Hot-press Forming
In the thin panel production process, the final step is "Hot Press Forming," which ensures that the panel is set according to the preset curvature.
Material Structure
- Lightweight Plywood + PVC
- Lightweight Plywood + PP
- Lightweight Plywood + PET
- Lightweight Plywood + HPL
BIGBAHN Offers Over 20 Popular Shaped Designs to Meet Various Furniture Functional Requirements:

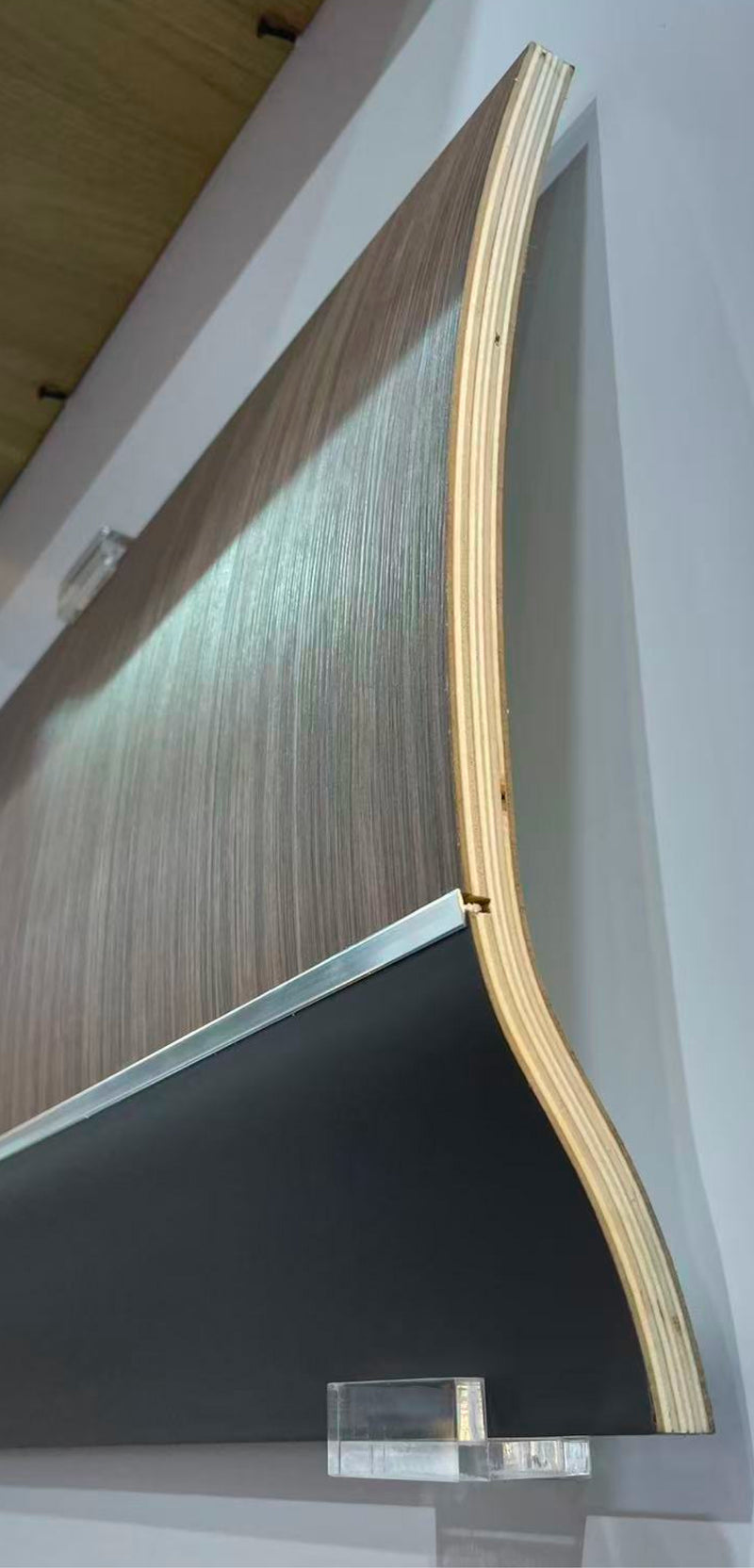

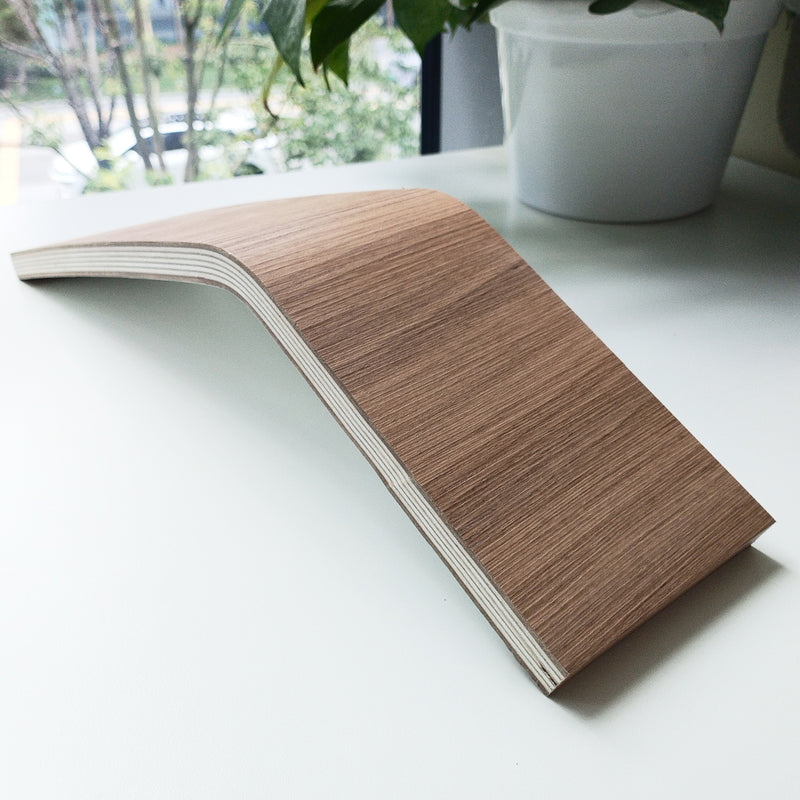

- Common Styles: Include Curved Door Panels (R900, R475, etc.), J‑Shaped Doors, F‑Shaped Doors, U‑Shaped Drawer Fronts, V‑Shaped Doors, S‑Shaped Panels, Shell Shaped Cabinet Doors, and LP Locker Doors.

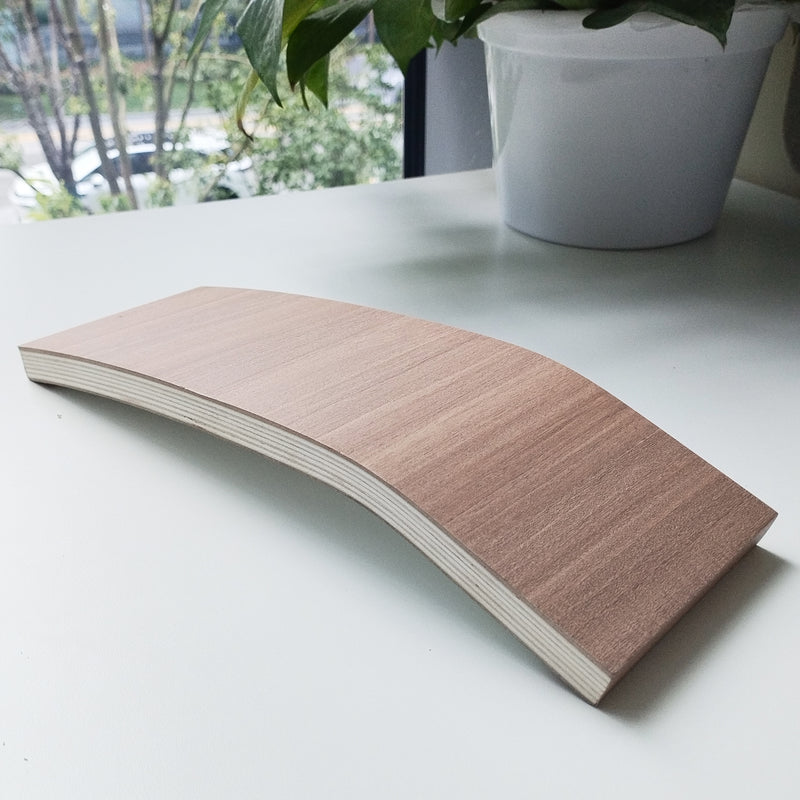

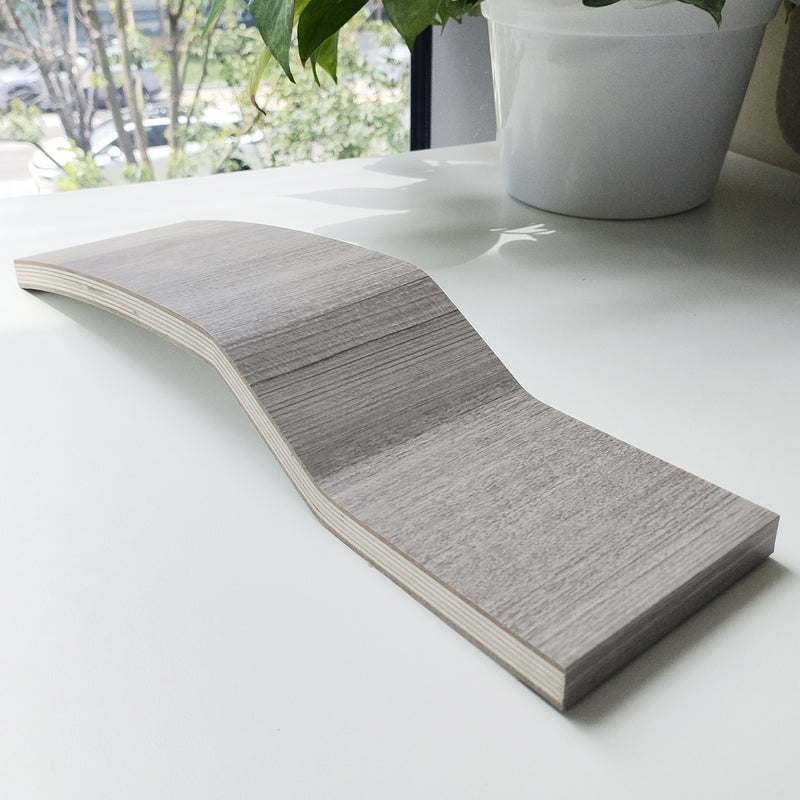

- Structural Components: Also Include Octagonal Cabinet Doors, Film Bending Doors, Chida Bending Doors, Bathroom Partitions, and L‑Shaped Booth Seats, among other shaped components.
For thicker panels, we apply substrate hot pressing, hot pressing after secondary overlay, and re-pressing after laminate application to ensure a flat surface that resists waviness.
Specification
| Core Material | Poplar Hybrid |
| Dimensions | 260×150 mm / 300×2400 mm / 260×436 mm / 300×935 mm / 340×2400 mm |
| Decorative Films | PP, PET, PVC, HPL |
| Lamination Process | Automatic film laminating machines and PUR reactive polyurethane hot-melt adhesives |
| Thickness Options | 12,15,18mm |
| Tolerances | Length&Width: +/-1.5mm, Thickness: +/- 0.3mm |

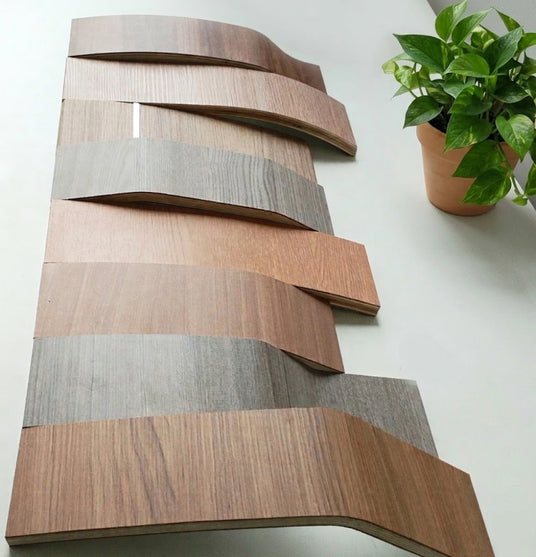

Shaped Panels Style
RV Sleek, Sophisticated Style
-

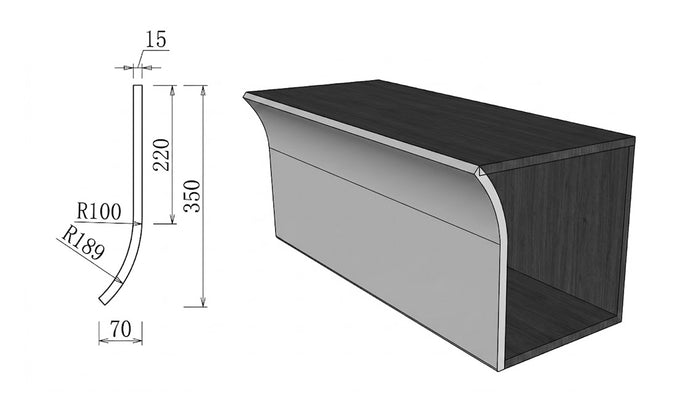

R100
Customize the overall size to your needs. Ideal for kitchen base cabinets, wall cabinets, and wardrobes. A clean recessed-panel design with defined radii.
-

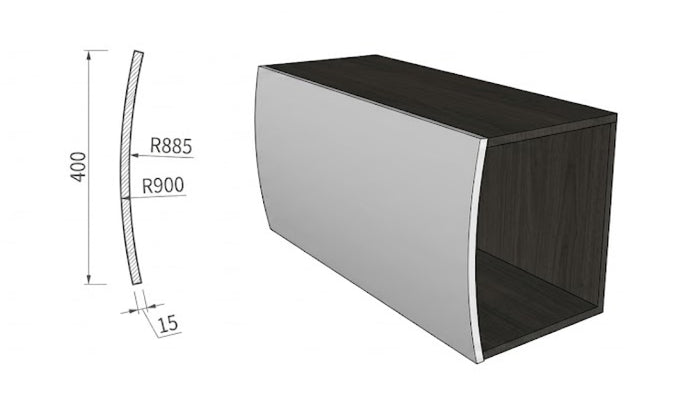

R900
This arched or curved-top panel is ideal for tall storage cabinets,bookcases with arched openings, ordecorative hutch doorswhere a soft radius top edge is required.
-

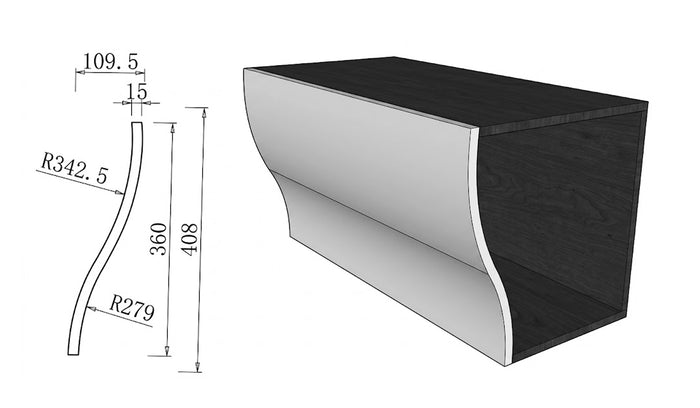

R342
This asymmetrical radius panel (R342.5 / R279) works well for corner cabinets, sideboard doors, or cabinet ends with curved detailing requiring a unique contoured edge.
-

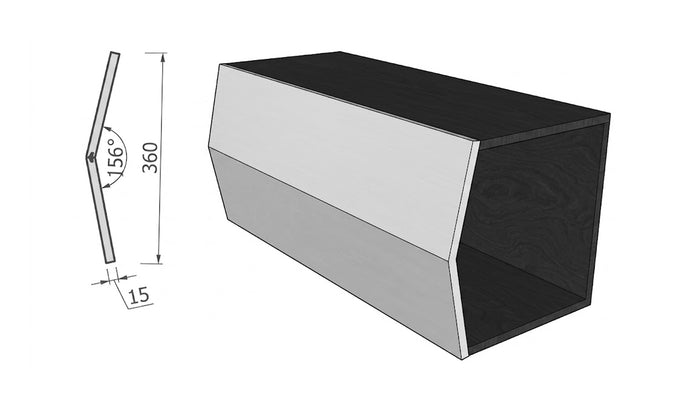

R156
This custom-shaped panel is the ideal solution for aerodynamic RV overhead lockers and curved upper cabinetry. It maximizes storage efficiency with a perfect flush fit.
-

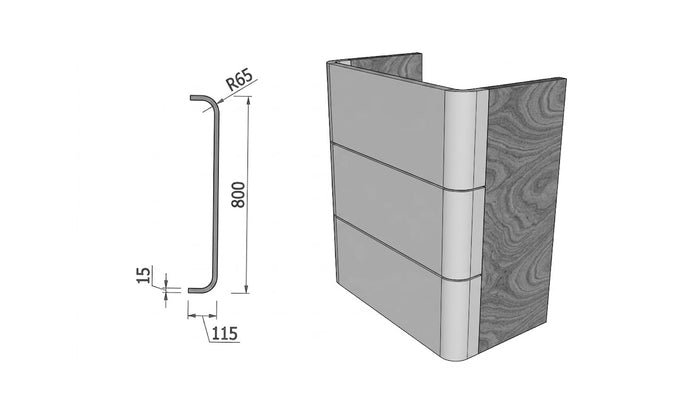

R65
The perfect solution for RV kitchen galleys, corner wardrobes, or entryway vanity cabinets. Designed to eliminate sharp corners in tight spaces.
-

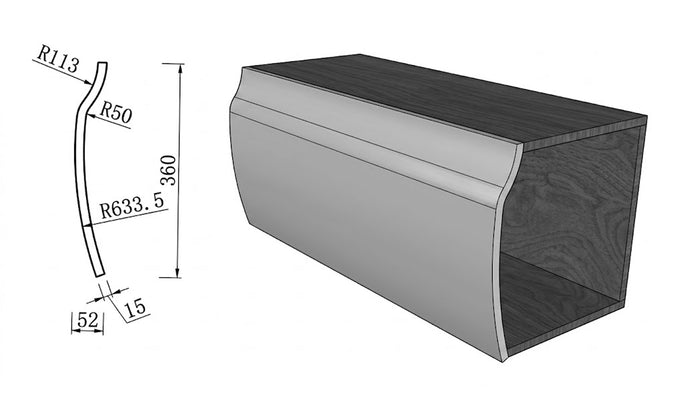

R50
Featuring an elegant S-curve design with R50, R113, and R633.5 radii, this custom-shaped panel is the ultimate solution for streamlined RV overhead storage cabins and premium wave-styled locker doors.
-

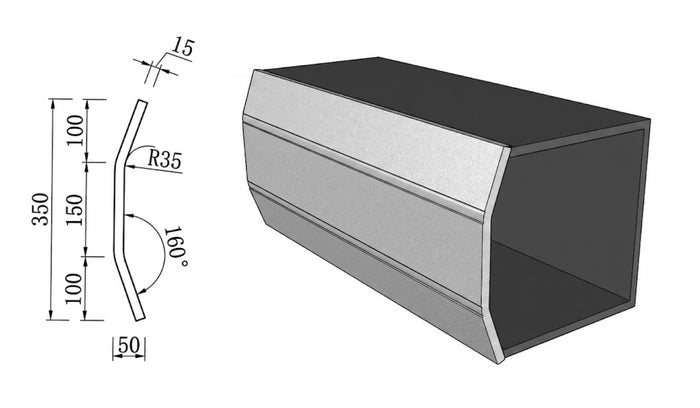

R35
Featuring a unique multi-faceted profile, this custom-shaped panel is the perfect solution for modern, ergonomic RV overhead lockers and specialized ceiling-line cabinetry.
-

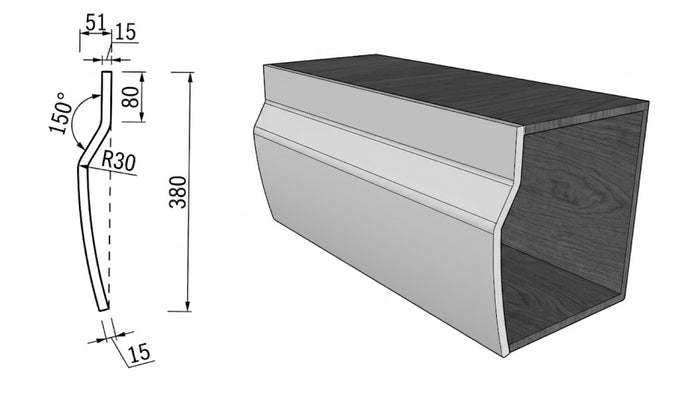

R30
Featuring a unique stepped curve design, this custom-shaped panel is the ultimate solution for stylized RV overhead lockers and specialized contour cabinetry.
-

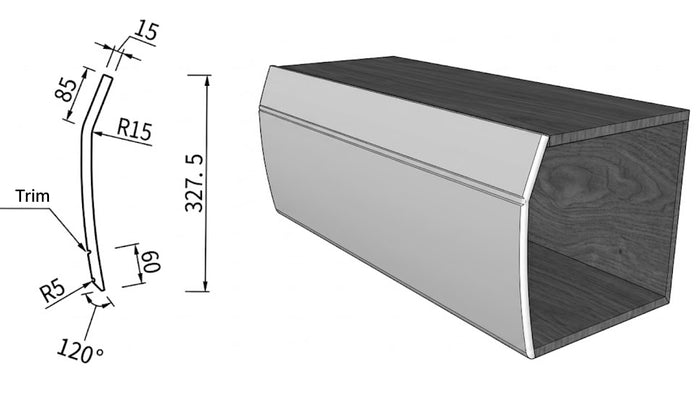

R15
Featuring a subtle, aerodynamic curved design, this custom-engineered panel is the premier solution for integrated RV overhead cabinets and streamlined, handle-less locker doors.
Frequently Asked Questions

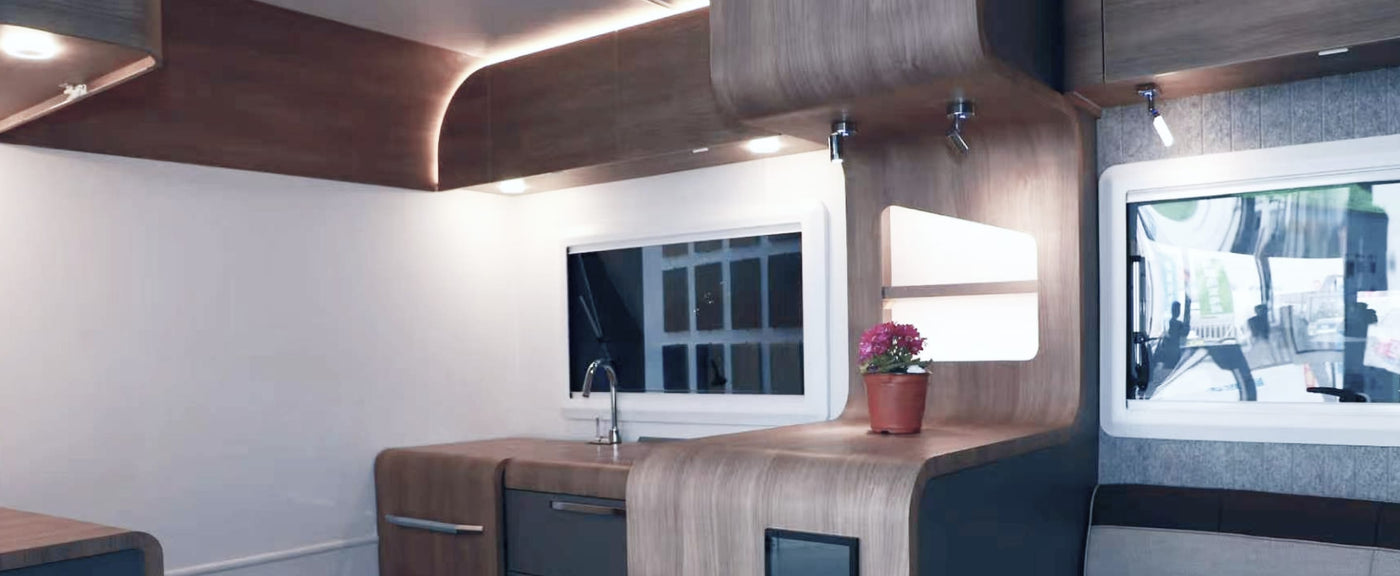

Why Is BIGBAHN Shaped Panels the Top Choice for RV Renovations?
Why Is BIGBAHN Shaped Panels the Top Choice for RV Renovations?
BIGBAHN Shaped Panels are the key components for optimizing compact RV spaces while enhancing interior aesthetics. Their curved design significantly challenges visual limitations and increases the sense of spatial depth inside the vehicle.
Our offers over 20 popular profiles, enabling diverse aesthetic customizations. This space‑optimizing solution perfectly integrates functionality with spatial artistry. It is the core tool for achieving weight reduction and increased capacity in rv paneling.
What Are the Safety Advantages of Shaped Cabinet Doors in Moving Vehicles?
What Are the Safety Advantages of Shaped Cabinet Doors in Moving Vehicles?
Using BIGBAHN Shaped Cabinet Doors effectively enhances living safety through smooth, rounded designs.
The unique curved profile eliminates sharp right angles, making edges less prone to chipping and ensuring stable performance under vehicle vibration. This design increases a sense of softness around the interior, significantly reducing the risk of accidental impact and injury. Safety and high durability are the core advantages that distinguish shaped doors from standard square-edged panels.
What Customization Options Do BIGBAHN Shaped Panels Support?
What Customization Options Do BIGBAHN Shaped Panels Support?
BIGBAHN offers a wide range of profiles and finishes to meet extreme personalized aesthetic customization needs. Covering over 20 classic profiles including J‑shaped, F‑shaped, and shell‑shaped, as well as thousands of texture laminates such as PP, PET, and HPL.
With professional color‑matched edge‑banding technology, shaped components seamlessly integrate into any luxury interior. This flexible customization capability helps create a unique living experience.
How does the manufacturing process of curved panels ensure their physical performance?
How does the manufacturing process of curved panels ensure their physical performance?
BIGBAHN shaped panels are produced through a multi-step hot press forming process that ensures structural stability and resistance to deformation.
They use high-quality lightweight plywood substrates combined with PUR lamination technology, offering excellent moisture resistance, scratch resistance, and weight reduction advantages. While maintaining an elegant curved profile, these panels still meet required standards for screw-holding capacity and physical strength.
How Do Shaped Panels Support Lightweight Design in RVs?
How Do Shaped Panels Support Lightweight Design in RVs?
Choosing BIGBAHN shaped components achieves extreme vehicle weight reduction while maintaining visual aesthetics.
These panels use low‑density composite cores, offering approximately 40% weight savings compared to standard panels – effectively lowering fuel consumption and increasing payload capacity.
