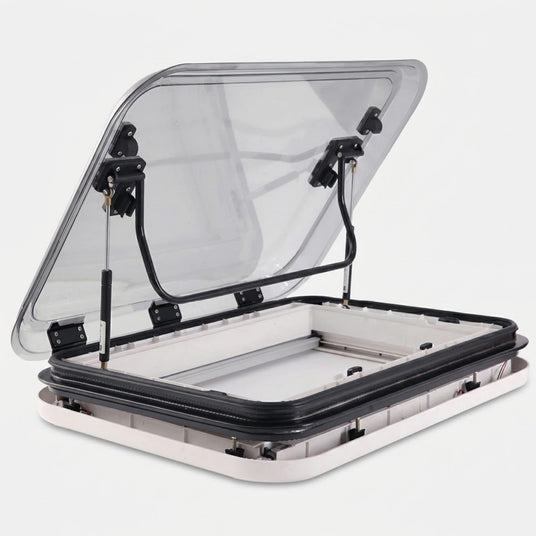

MG16SL
The MG16SL series skylight is engineered for users seeking a premium mobile living experience. It delivers exceptional natural daylighting while meeting industrial‑grade standards in structural strength and operational smoothness.
Key Features
- Industrial-Grade Durability
- Integrated ABS Inner Frame
- Superior Insulation Performance
- Double-layer Acrylic Glass
- Maximum Opening Angle of 70 Degrees
- Integrated Privacy and Insect Protection
- Precision Engineering & Versatile Fit
Specification
HOLE ENTRANCE FILLET: 4-R70.
| Material | Aluminium Alloy, an ABS inner frame with LED light, and a UV-proof double-layer |
| Multifunction | Open, close, ventilate, insulate, provide privacy, allow sunlight in, good water tightness, easy operation with gas lift spring with sunshade. Besides, rv skylight is with LED lights for lighting function |
| Main Parameters | Opening Angle: 70 degrees, Standard Skylight Fits Wall Thickness: 30-60mm, Hole Size (W x H): 800x500mm (31.5 x 19.7 inches)/700x500mm (27.6x19.7 inches)/500x500mm (19.7 x 19.7 inches) |
| Application | The skylight window for roof is mainly used for caravans, trailers, modified vehicles, special vehicles, etc. NOTE: Please note that ordering dimensions are cut-out dimensions, not overall dimensions |
| DIMENSIONS | 500 * 500 / 700 * 500 / 800 * 500 |
| APERTURE SIZE | 502 * 502 / 702 * 502 / 802 * 502 |
