BIGBAHN | SKU:
MD-JS4-R5

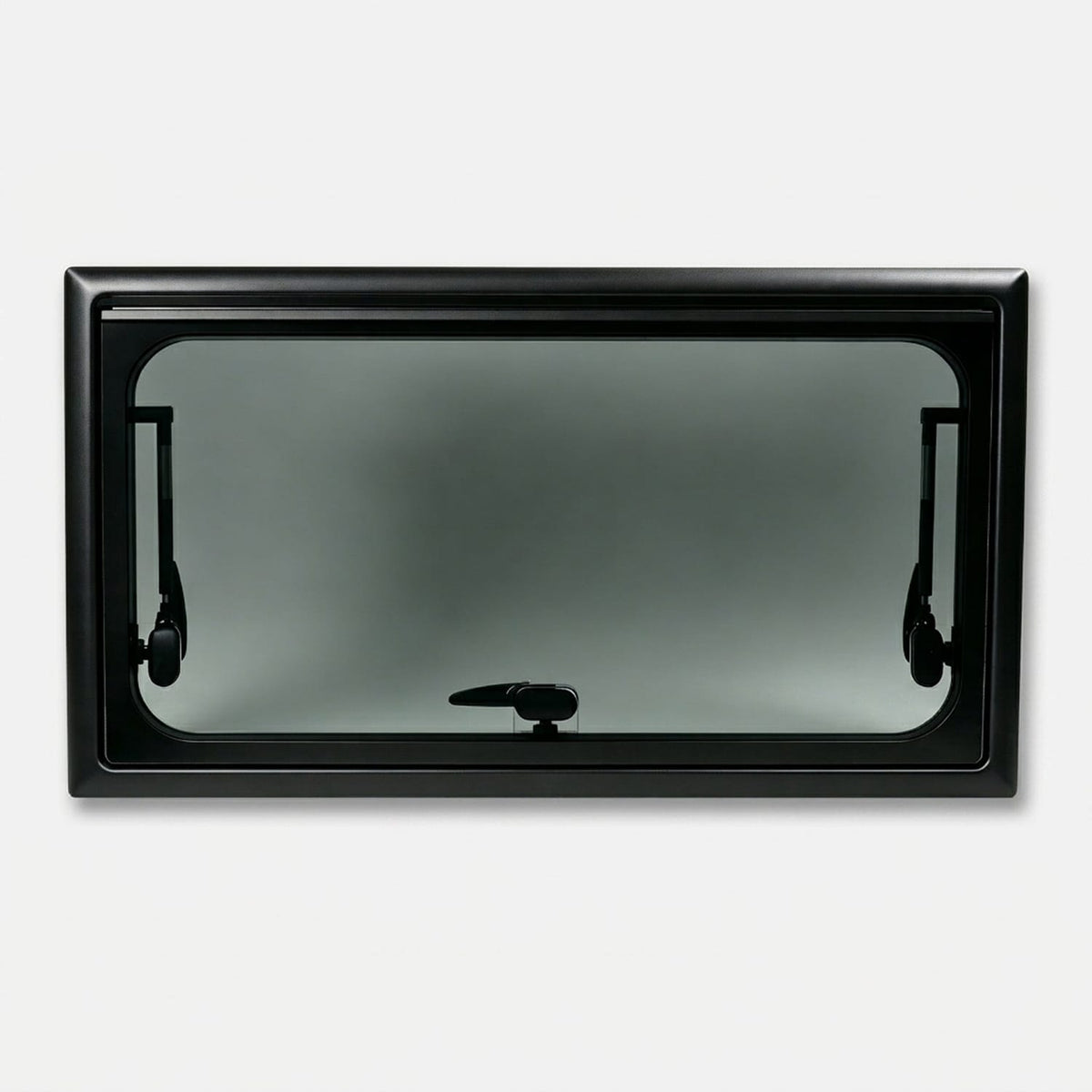

Certified RV Aluminum Window Solutions
Certified RV Aluminum Window Solutions is backordered and will ship as soon as it is back in stock.
Contact Us If You Have Any Questions
Contact Us If You Have Any Questions
Company Address
Company Address
AM SPORTPARK 4, 97246 EIBELSTADT, GERMANY
Contact Number
Contact Number
+49 9303 9812030
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

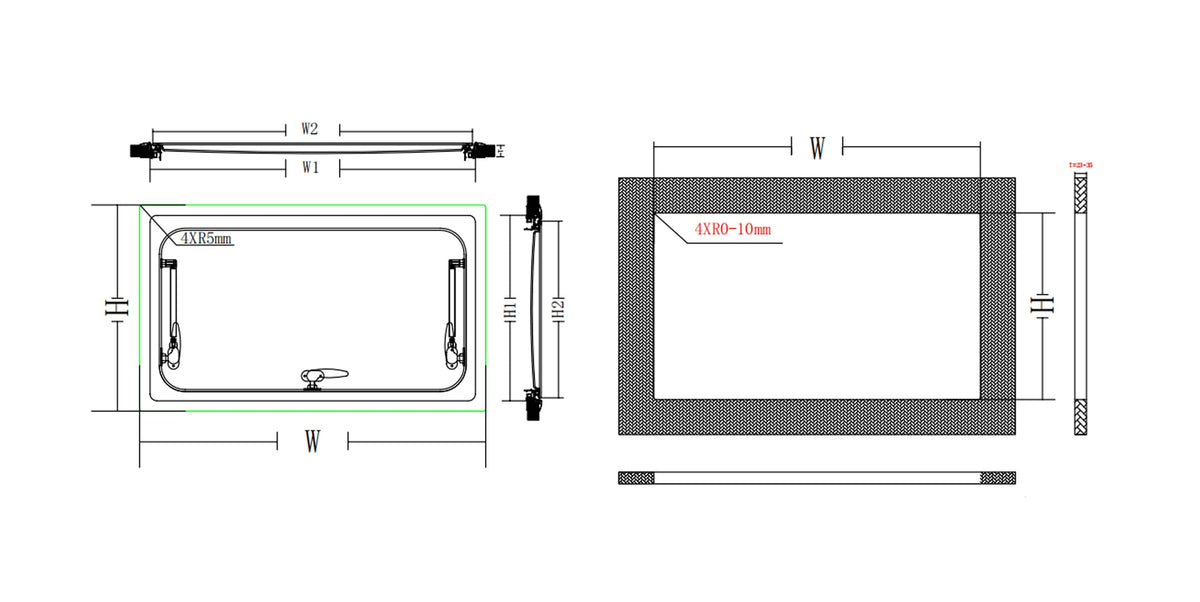

Basic Parameters
| Frame Materials | Aluminum Windows |
| Standard Sizes (Specifications) | 280-380 |
| Overall Dimensions (W x H, mm±1) | 322*422 |
| Outer Corner Radius (4XR) | 5 |
| Glass Dimensions (W3-H3, mm±2) | 265-358 |
| Structural Dimensions (W2-H2, mm±1) | 278-378 |
| Wall Cutout Dimensions (W1-H1, mm+1-1.5) | 280-380 |
| Wall Cutout Corner Radius (4XR, mm) | 0-10 |
| Compatible Wall Thickness (mm±0.5) | 23-35 |
| Minimum Order Quantity (MOQ) | 1x20'GP |
| Supply Ability | 20 containers per month. |
| Window Weight (kg) | 15 |
| Delivery Time / Lead Time | 25-30 days upon order confirmation. Production time only, excluding transit time. |
| Applicable Vehicle Models | Compatible with caravans, Class A, B, and C motorhomes, overlanding conversions, and commercial hospitality vehicles. |
| Fire Resistance Rating / Fire Rating | B2/D-s1,d0 |
| Payment Terms | 30% deposit, 70% balance payment against BOL copy |
| Certification | ECE, etc. |
