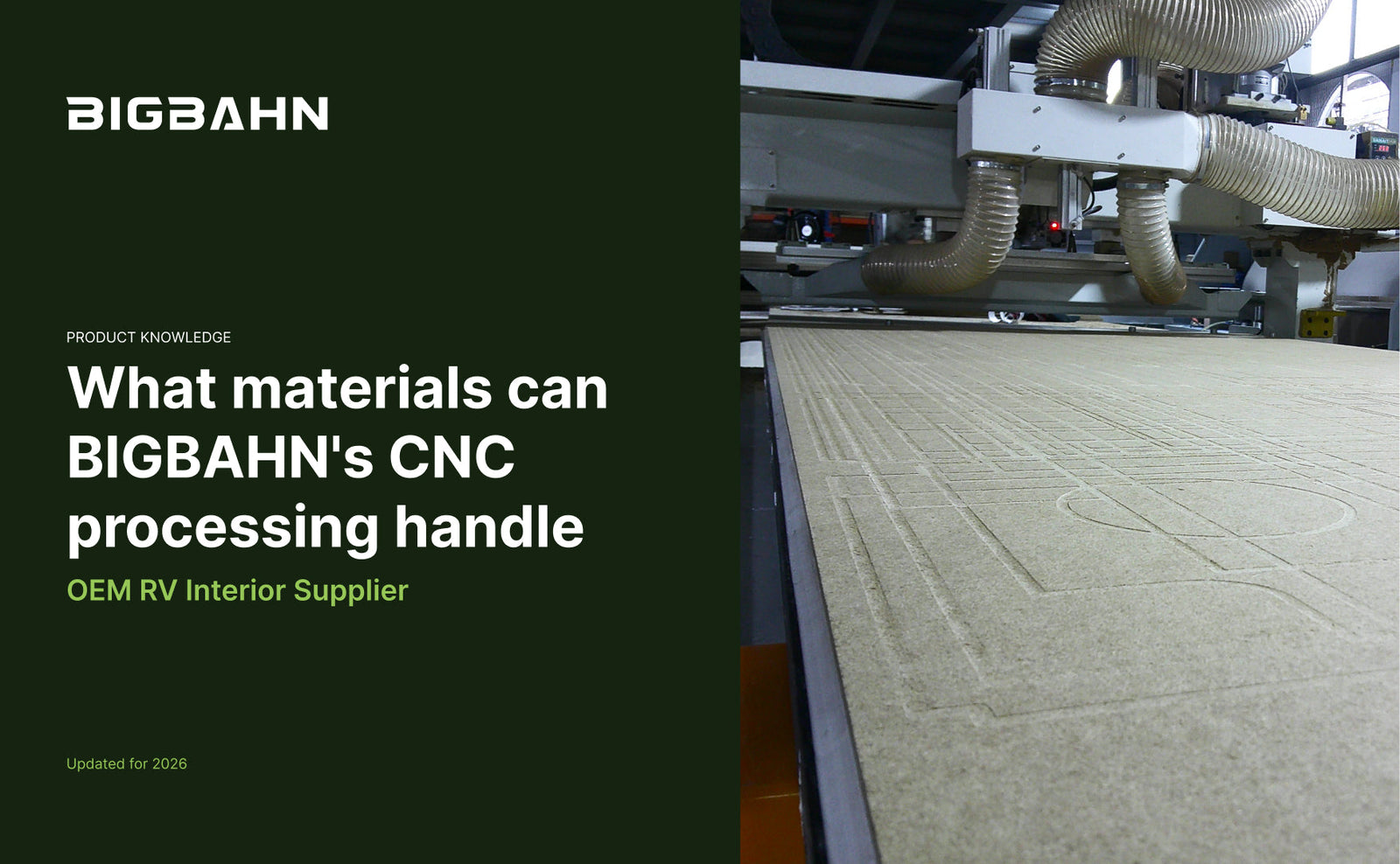

Plywood Cut to Size: Precision CNC Panels for RV & Furniture

Plywood cut to size is a processing service that cuts standard-size plywood panels to specified length and width dimensions according to customer drawings, with tolerances of ±1.5mm for length/width and ±0.3mm for thickness, combined with CNC drilling, milling, grooving, and edge banding so panels arrive ready for direct assembly.

Compared to on-site manual cutting, factory pre-cutting reduces material waste by approximately 15-30% and eliminates rework caused by dimensional errors. BIGBAHN's German source factory provides lightweight plywood (density 400-430 kg/m³, 40% lighter than standard plywood) with CNC processing and automated edge banding, standard size 2440×1220mm, thickness range 2.7-30mm, 25-30 day factory lead time.

What Is Plywood Cut to Size? From Standard Sheet to Finished Component

Plywood cut to size is a one-stop service where a board supplier cuts standard-size plywood to precisely specified length and width dimensions based on customer technical drawings (DXF / DWG / PDF), with optional deep-processing operations such as drilling, milling, grooving, chamfering, and edge banding.

machine cnc

Its core value lies in extending "material supply" to "component delivery" — manufacturers no longer receive standard boards requiring secondary processing, but finished components ready for the assembly line.

From a process perspective, modern cut-to-size services rely on computer numerical control (CNC) technology. Traditional manual cutting depends on worker experience and panel saw precision, making dimensional consistency difficult to guarantee in batch production; CNC cutting, through digital tool path control, ensures highly consistent dimensions across every board and every batch. In industry practice, CNC cut-to-size typically achieves tolerances of ±1.5mm for length/width and ±0.3mm for thickness, with ±0.1mm achievable in high-precision scenarios.

This precision is particularly critical for RV manufacturing — RV interior cabinets, wall panels, and bed platforms must fit tightly against body curves, and errors of a few millimetres can cause installation difficulties or uneven gaps.

cnc cutting machine

Plywood cut to size applications span multiple industries: RV and trailer manufacturing (floor panels, side walls, structural components cut to body dimensions), furniture production (cabinet components, shelving, backs machined to furniture-maker specifications), cable reel manufacturing (flanges, cores, side discs cut to engineering tolerances), and construction formwork systems (concrete formwork panels cut and routed for proprietary forming systems).

For RV OEMs, choosing a board supplier with cut-to-size capability means eliminating on-site cutting processes, reducing equipment investment, lowering waste disposal costs, and significantly shortening production cycles.

Why Choose Factory Pre-Cutting? Triple Benefit of Cost, Efficiency, and Quality

Choosing factory pre-cutting over on-site cutting delivers core benefits in three dimensions: material utilisation, labour efficiency, and quality consistency.

Material utilisation is the most direct benefit. In manual cutting, workers arrange layouts based on experience, making optimal nesting difficult to achieve; factories use nesting software that automatically calculates optimal layouts through algorithms, compactly arranging multiple components on standard boards, typically improving material utilisation by 15-30%.

Taking a standard 2440×1220mm lightweight plywood board as an example, optimised nesting can yield 1-2 additional cabinet door components — in batch production, this translates to thousands of euros in material cost savings.

Additionally, factory offcuts can enter the next batch for recycling, whereas on-site cutting scraps are often discarded directly.

cnc design

On labour efficiency, factory pre-cutting transfers the cutting process from the customer's site to the supplier's factory. Customers need not configure panel saws, dust extraction systems, and specialised operators, nor bear the safety risks and dust management costs of cutting operations.

Panels arriving on-site can go directly to assembly, improving installation efficiency by approximately 30% (Source: BIGBAHN Production Data, 2026). For European RV manufacturers where labour costs are high, the cost-performance of outsourcing cutting operations is particularly compelling.

Quality consistency is the third dimension. Manual cutting is prone to edge chipping, dimensional deviation, and diagonal errors, especially when processing lightweight boards — low-density core materials are more likely to produce burrs and tear-out under ordinary saw blades.

Factory CNC cutting with specialised tooling and dust extraction achieves zero-chip cutting. BIGBAHN employs a German 8-stage dust extraction system, simultaneously removing wood chips during cutting, ensuring both cut surface quality and clean workshop environment.

Thickness Selection in RV Applications: What Thickness for Each Position?

Thickness selection for lightweight plywood directly determines component strength, weight, and cost. BIGBAHN offers 10 thickness grades from 2.7mm to 30mm (2.7, 3, 5, 6, 9, 12, 15, 18, 25, 30mm), with clear recommended specifications for different RV positions.

Cabinet furniture: cabinet boxes recommend 15mm (the all-round choice balancing structural strength and screw-holding power); wardrobe side panels 15mm or 12mm; overhead cabinets 12mm (weight reduction priority); back panels, drawer bottoms, and interior trim 3mm, 5mm, or 6mm; shaped panels typically fixed at 15mm or 18mm.

Wall and ceiling paneling: wall lining recommends 3mm, 5mm, or 6mm; ceiling lining 3mm or 5mm; decorative grille ceilings fixed at 12mm. Given the large surface area of RV interior linings, replacing 9mm panels with 3mm or 5mm alternatives can reduce component weight by approximately 40-60% — critical for overall vehicle efficiency and payload optimisation.

Bed platforms and seating: standard bed panels recommend 18mm (20±1 kg per panel); bed panels with skin covering can reduce to 12-15mm; bench seating 15mm (17±1 kg per panel); heavy-duty load-bearing bed panels 25mm (25±1 kg per panel).

Partitions and storage: lightweight partitions/non-load-bearing panels 9mm or 12mm (approx. 11 kg per sheet); storage boxes 15mm; internal shelving 12mm (approx. 18% weight reduction versus 15mm panels).

Key parameter comparison: 12mm board screw retention approx. 710 N, bending strength 26.52 MPa, modulus of elasticity 5,100 MPa; 15mm board screw retention approx. 740 N, bending strength 54.6 MPa, modulus of elasticity 6,560 MPa. Upgrading from 12mm to 15mm more than doubles bending strength — this is why load-bearing positions and frames requiring hardware mounting must prioritise 15mm.

CNC Processing Capability and Edge Banding: The Complete Chain from Cutting to Finished Part

The value of cut-to-size services lies not only in "cutting accurately" but in providing a complete processing chain from cutting to finished component.

A complete CNC processing line should cover:

cutting straight cuts, curved profiles, complex routing paths;
drilling precision holes of any diameter and configuration for bolts, fittings, cable routing, and assembly points;
milling and grooving surface milling, grooving, pocket creation for recessed hardware, panel-to-panel connections, and specialised structural components;
edge shaping chamfers, bevels, rebates, and custom profiles for tight-fit assembly and finished aesthetics;
partial panel machining sectional processing of large panels, machining specific zones without affecting the full panel;

Edge banding is an often-overlooked yet critical process in RV board processing. Exposed board cut edges reveal the core material, which absorbs moisture and swells in damp environments; unbanded edges also wear and fray during use.

Automated Edge Banding

Factory pre-bonded edge-sealed panels improve installation speed by approximately 30% versus on-site banding, achieving furniture-grade surface aesthetics.

BIGBAHN employs automated edge banding machines using a series of precision pressure rollers to seamlessly apply and seal protective edge bands onto curved profiles of lightweight plywood — achieving complete sealing even on curved shaped panels.

On material adaptability, a professional CNC processing centre should handle multiple materials: foam sandwich panels, honeycomb sandwich panels, plywood sandwich panels, foam boards, timber, aluminium profiles, fibreglass profiles, and more. This multi-material capability is particularly important for RV manufacturing — a single RV's interior often involves wood-based boards, composite sandwich panels, and metal profiles simultaneously, and obtaining processing services for all materials from one supplier greatly simplifies supply chain management.

For positions requiring curved shapes, curved panels offer customisable curvature combined with CNC processing for complex curved surfaces. On surface finishing, decorative films (PP, PET, PVC, HPL) can be laminated to lightweight cores via the PUR flat laminating line to form complete finished boards.

How to Order Plywood Cut to Size? The Process from Drawing to Delivery

Ordering cut-to-size services typically involves five steps, and understanding each helps avoid common communication errors and delivery delays.

Step 1: Clarify material specifications. Determine board type (lightweight plywood, PET foam board, HPL, etc.), thickness (2.7-30mm), core material (poplar hybrid, balsa, etc.), surface treatment (raw board / decorative film / HPL laminate), and environmental grade (ENF / E0). Material specification confirmation is the foundation for all subsequent processing.

Step 2: Submit technical drawings. Provide drawings in DXF, DWG, or PDF format, annotating each component's length/width dimensions, hole coordinates, groove positions, chamfer requirements, and tolerance grades. The more detailed the drawings, the more accurate the processor's quotation and the lower the rework risk. For complex components, providing 3D models or exploded views is recommended.

Step 3: Confirm tolerances and processes. Clarify tolerance requirements for critical dimensions (standard ±1.5mm / high-precision ±0.1mm), whether edge banding is needed, edge band material and colour, hole precision grade, and surface protection requirements (such as film protection). These details directly affect processing costs and final quality.

Step 4: Confirm lead time and logistics. Factory lead time is typically 25-30 days (Source: BIGBAHN Supply Chain Documentation, 2026), with European warehouse stock availability reducing wait times. Confirm packaging method (pallet / carton / corner protection), shipping method, and delivery location.

Step 5: Sample verification (recommended). For batch orders, requesting samples first to verify dimensional accuracy, cut surface quality, and edge banding effects is recommended before placing volume orders. BIGBAHN provides free samples, typically delivered within 25-30 days.

Certifications Cut Panels Must Still Meet

A common misconception is that "boards are no longer subject to certifications once cut" — in fact, components after cut-to-size processing must still meet the original material certification requirements, because the environmental and safety performance of the final product does not change through physical cutting.

Formaldehyde emission is the core compliance indicator for RV interior materials.

On fire performance, BIGBAHN lightweight plywood complies with DIN 5510-2 S4 standard with fire behaviour class B2.

Sustainability certifications For RV manufacturers exporting to European markets, these certifications are entry conditions to mainstream OEM supply chains.

Glossary

Plywood Cut to Size: Service cutting standard boards to specified dimensions per customer drawings.

CNC Processing: Computer numerical control machining achieving precision cutting, drilling, milling via digital tool paths.

Nesting Optimisation: Algorithmic calculation of optimal layouts to maximise material utilisation.

Tolerance: Permissible dimensional deviation range, e.g. ±1.5mm length/width, ±0.3mm thickness.

Screw Retention: Board's resistance to screw pull-out, BIGBAHN 12mm approx. 710 N, 15mm approx. 740 N.

Bending Strength: Maximum stress a material resists before bending failure, 12mm at 26.52 MPa, 15mm at 54.6 MPa.

Modulus of Elasticity: Stress-strain ratio in elastic deformation stage, 12mm at 5,100 MPa, 15mm at 6,560 MPa.

Edge Banding: Process of applying protective edge bands to board cut edges, preventing moisture absorption and enhancing aesthetics.

Edge Chipping: Tear-out or burr defects on board edges during cutting.

ENF Standard: Highest environmental grade with formaldehyde emission ≤ 0.025 mg/m³.

DIN 5510-2 S4: German rail vehicle material fire protection standard, complied with by BIGBAHN plywood.

References

BIGBAHN Technical Specifications — Poplar Hybrid Lightweight Plywood Core Parameters
BIGBAHN CNC Processing Capability Documentation
REACH Regulation (EC) No 1907/2006, Annex XVII, Entry 77 — Formaldehyde limits
UN ECE Regulation No. 118 — Burning behaviour of interior materials in road vehicles
BIGBAHN Production Data — Installation efficiency and edge banding performance
BIGBAHN Supply Chain Documentation — Lead time and European warehouse stock
China National Standard GB/T 39600-2021 — Formaldehyde emission grading system
MaxPly Cut to Size Plywood — CNC Machining Operations and Industry Applications
DIN 5510-2 — Fire protection in rail vehicles, Part 2: Fire behaviour and fire side effects of materials (Source: DIN, Deutsches Institut für Normung)
Cutting Optimisation Software Industry — Nesting utilisation benchmarks (Source: Cut Yield / OptiCutter Industry Data, 2026)
