Applications in RVs and Tiny Spaces
-

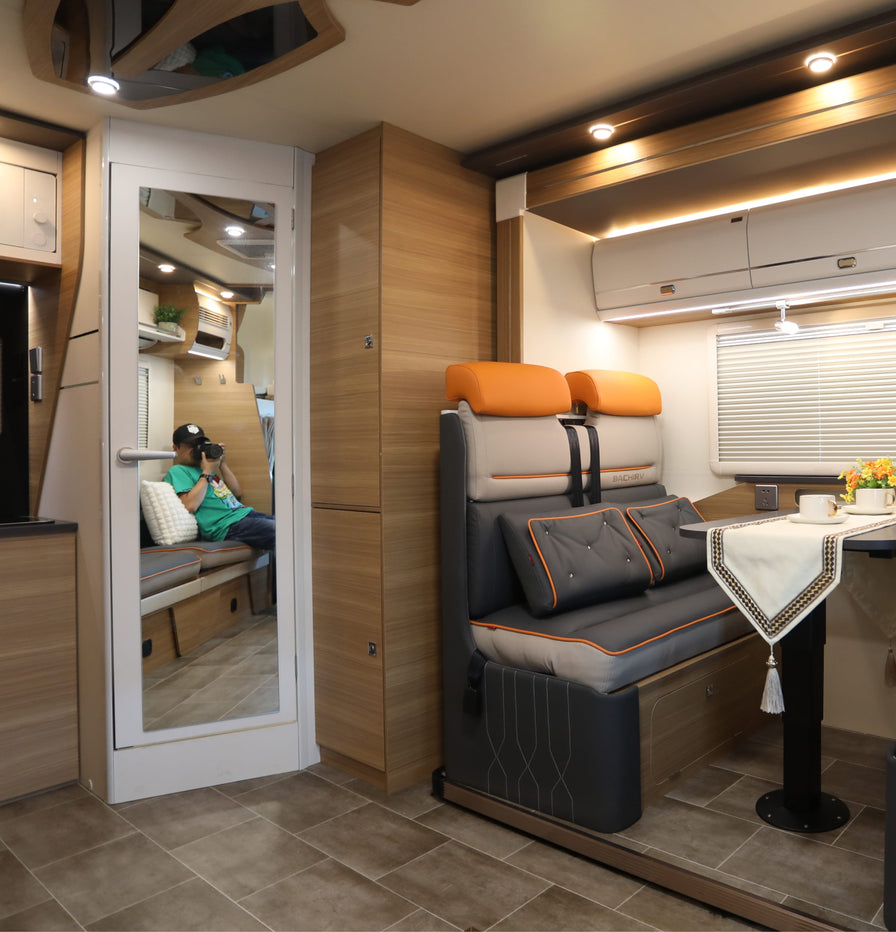

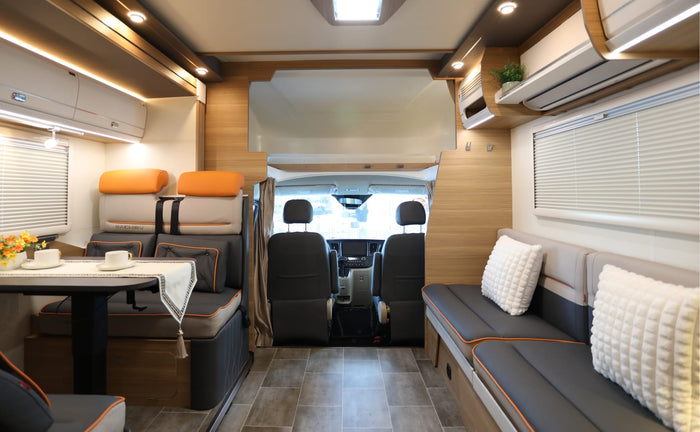

RV Interior Furniture
Recommended panel thicknesses for BIGBAHN RV furniture applications:

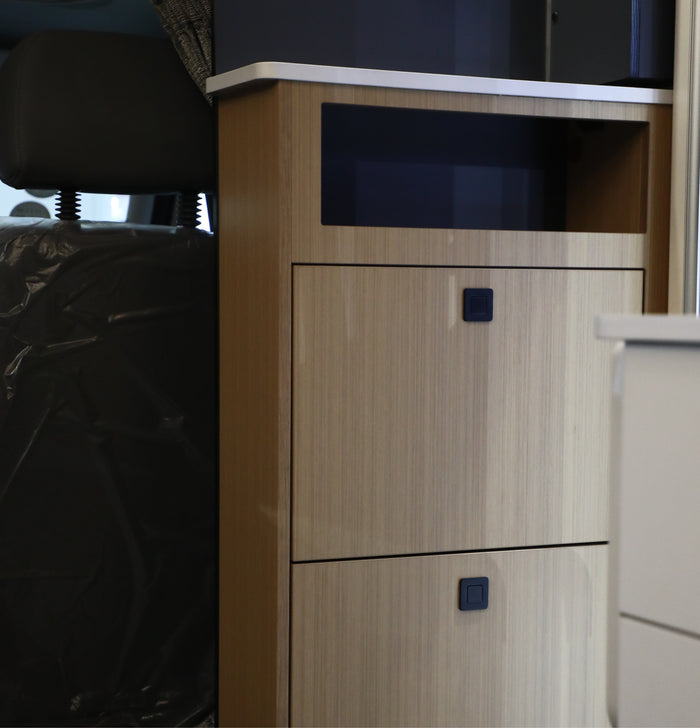

- Cabinet Boxes – 15 mm recommended.
- Wardrobe Side Panels – 15 mm or 12 mm recommended.

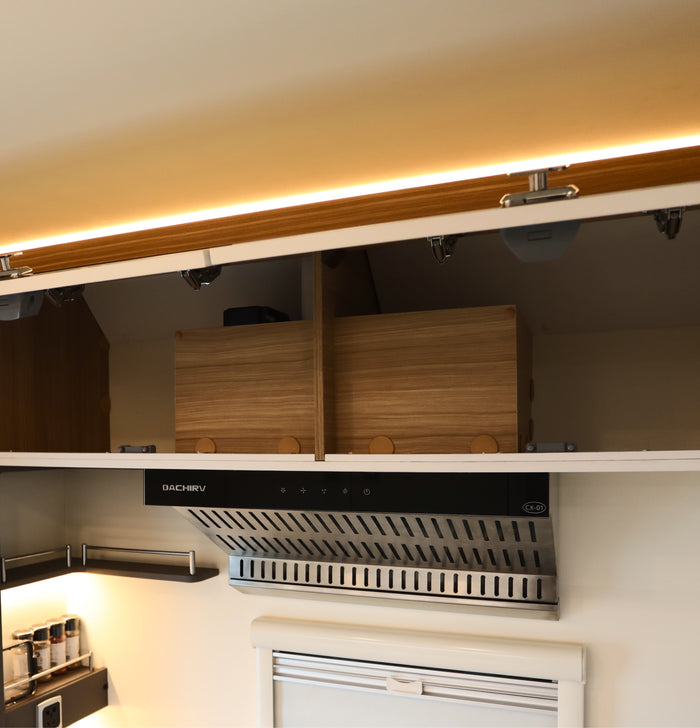

- Overhead Cabinets – 12 mm recommended.
- Back Panels, Drawer Bottoms, and Interior Trim Panels – 3 mm, 5 mm, or 6 mm recommended.
- Shaped Panels – commonly fixed at 15 mm or 18 mm.
For the majority of BIGBAHN RV furniture projects, 15 mmserves as theall-round choice– delivering provenstructural strengthand reliablescrew-holding power. Meanwhile, 12 mmis thepreferred specificationfor overhead cabinets and applications whereweight reductionis a primary objective.
-
Wall and Ceiling Paneling
Recommended thicknesses for RV interior paneling applications:
- Wall Paneling / Lining – 3 mm, 5 mm, or 6 mm recommended.

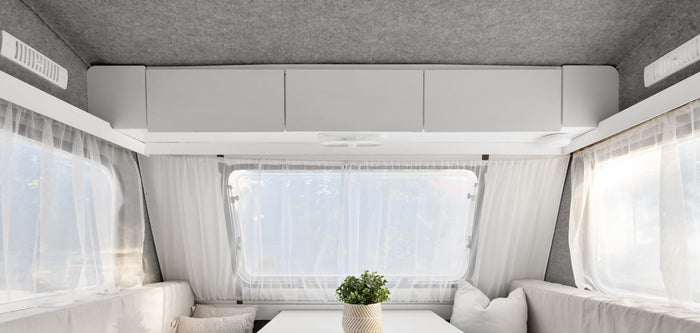

- Ceiling Paneling – 3 mm or 5 mm recommended.
- Decorative Grille Ceilings – fixed thickness of 12 mm.
Given the large surface area of RV interior linings, replacing 9 mm panels with 3 mm or 5 mm alternatives can reduce component weight by approximately 40% to 60% – a critical factor for overall vehicle efficiency and payload optimization.
For applications wherepremium aestheticsoracoustic performan ceare priorities – such as headboard walls or living room ceilings –12 mm grille panel sare strongly recommended to deliver enhanced visual appeal and sound absorption.
-

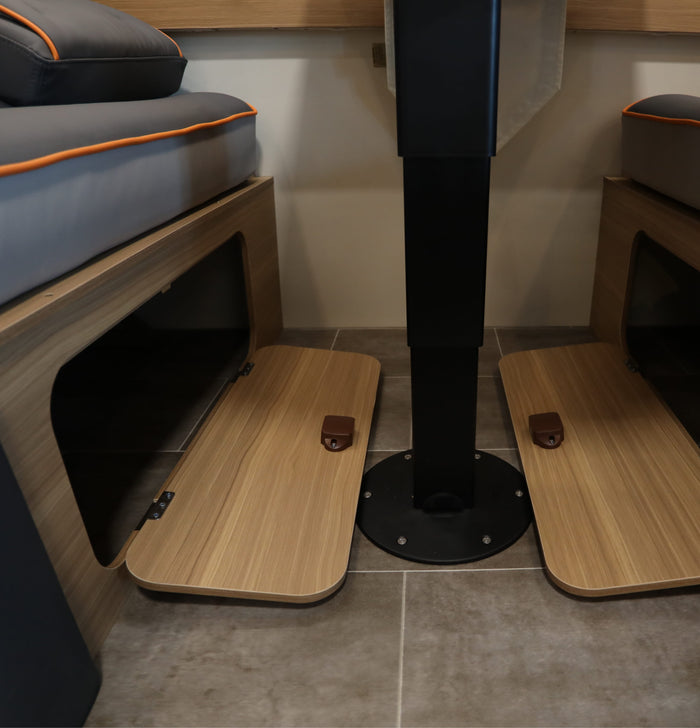

Bed Platforms and Seating
Recommended Thicknesses for Bed and Seating Components
- Standard bed panels – 18 mm recommended.
Weight per panel: 20 ± 1 kg. - Bed panels with a skin or covering – thickness can be reduced to 12–15 mm to achieve significant weight savings.
- Bench seating – 15 mm recommended.
Weight per panel: 17 ± 1 kg. - Seat cushion support panels – 15 mm or 18 mm recommended, depending on load requirements.
- Heavy‑duty load‑bearing bed panels – 25 mm recommended.
Weight per panel: 25 ± 1 kg.
For extreme weight‑reduction demands, consider using PET foam composite boards (thickness range: 9–30 mm) or XPS sandwich composite panelsas substrates for bed bases or flooring.
- Standard bed panels – 18 mm recommended.
-
Lightweight partitions and storage structures
Recommended Thicknesses for Partitions, Storage, and Shelving：
- Lightweight Partitions / Non-load-bearing Panels – 9 mm or 12 mm recommended; weight approx. 11 kg per sheet.
- Functional Partitions – 9–12 mm PET foam composite boards recommended.
- Storage Boxes – 15 mm recommended.
- Internal Shelving – 12 mm recommended, offering approx. 18% weight reduction compared to 15 mm panels.
- Drawer Bottoms or Back Panels – 3 mm, 5 mm, or 6 mm recommended.
For the majority of BIGBAHN projects,12 mm represents theideal choice for lightweight compartmentalization– effectively balancing weight savings with adequate rigidity and surface quality. However, for storage frames that involveload-bearing duties orhardware mounting,15 mmshould be prioritized to guaranteelong-term durabilityand reliable screw-holding performance.
-
Furniture Solutions
Recommended Thicknesses for Specialized RV Interior Components：
- Curved Door Panels – 15 mm recommended to ensure formability and structural integrity in curved profiles.
- Premium Dining Tabletops – 25 mm recommended. Alternatively, Compact Laminate can be used for enhanced scratch, impact, and heat resistance.
- Toilet Partitions – 15 mm recommended.
Given the high‑humidity environment typical of RV washrooms, PET foam composite boards. - Drawer Boxes: 12 mm or 15 mm (depending on load and hardware requirements).Bottom panels: 3 mm or 5 mm (lightweight yet sufficient for bottom support).
-
Functional Shields
Recommended Thicknesses for Automotive:

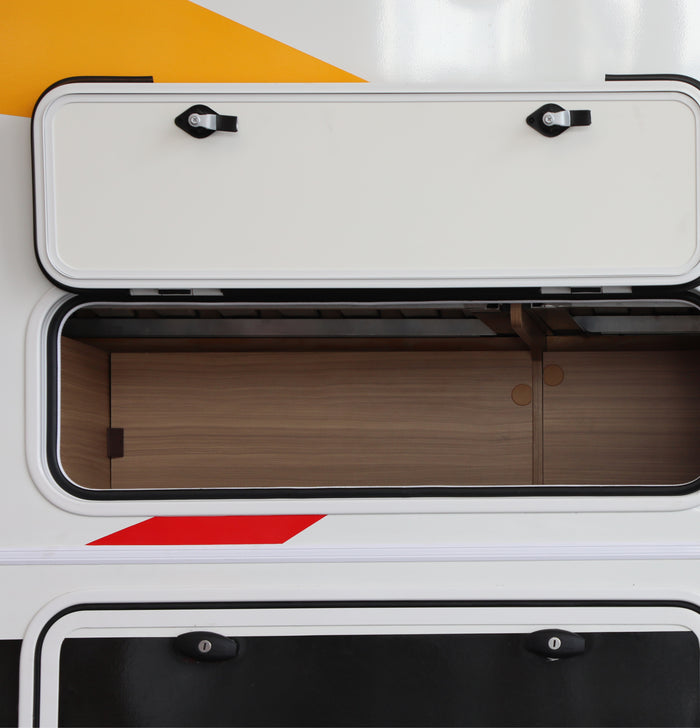

- Spare tire covers – typically use 9 mm to 15 mm lightweight panels.
- Sun visor substrates – use thin panels or PET foam composite boards as the internal framework.
- Trunk side trim panels – mostly adopt 3 mm to 6 mm lightweight poplar thin plywood to conceal the vehicle's metal structure while providing a clean, aesthetic interior finish.
The core advantage lies in BIGBAHN's strict control of finished panelmoisture contentwithin a tight range of 8–12%, combined with its advanced PUR lamination technology.
This ensures that even these smaller components remainfree from blistering and warpingunder the wide temperature fluctuations and demanding environmental conditions commonly encountered in RV applications.

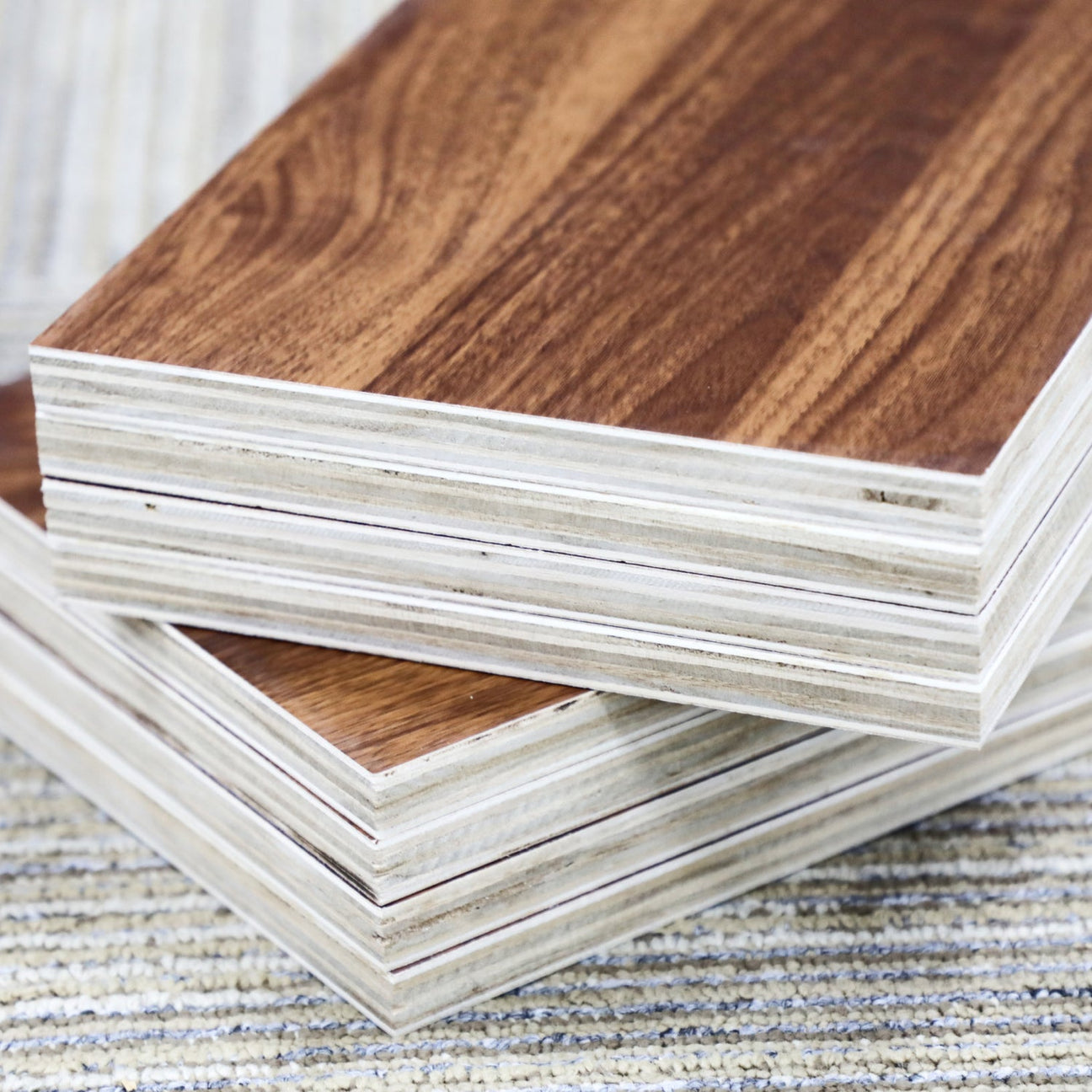

Lightweight Plywood
View all-
-
-
-
-
BIGBAHN
-
-
-
-
Specification

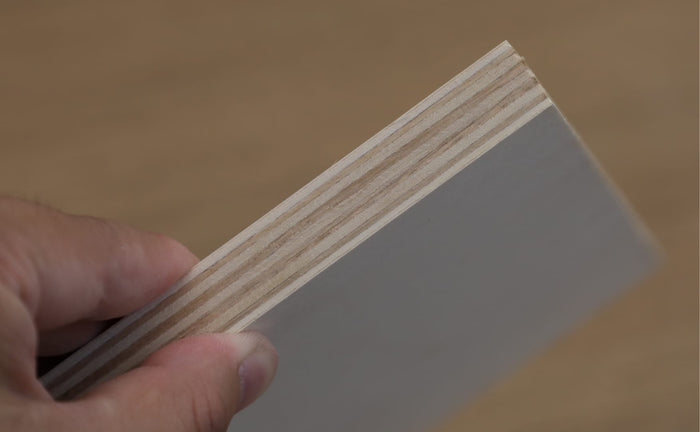

Poplar Hybrid Lightweight Plywood ( Raw Panel ) – Core Parameters.
| Core Material | Poplar Hybrid |
| Plywood Standard Size | 2440 × 1220 mm / 2500 × 1220 mm |
| Plywood Thickness | 2.7, 3, 5, 6, 9, 12, 15, 18, 25, 30 mm |
| Tolerances | Length&Width: +/-1.5mm, Thickness: +/- 0.3mm |
| Plywood Density | 400-430 kg/m3 |
| Weight per Sheet (1220 × 2440 mm) | 9 mm: 11 ± 1 kg; 12 mm: 14 ± 1 kg; 15 mm: 17 ± 1 kg; 18 mm: 20 ± 1 kg; 25 mm: 25 ± 1 kg; |
| Moisture Content | 6-14% |
| Screw Strength | 12 mm thickness: approx. 710 N; 15 mm thickness: approx. 740 N; |
| Bending Strength | 12 mm: 26.52 MPa; 15 mm: 54.6 MPa; |
| Modulus of Elasticity | 5,100 MPa (12 mm) to 6,560 MPa (15 mm) |
| Formaldehyde Grade | ENF & E0 |
| Certifications | DIN 5510-2 S4; FSC; JAS F☆☆☆☆ (Formaldehyde emission ≤ 0.3 mg/L); |
| Fire Behavior | B2 |
| Surface Quality | Class 1 |

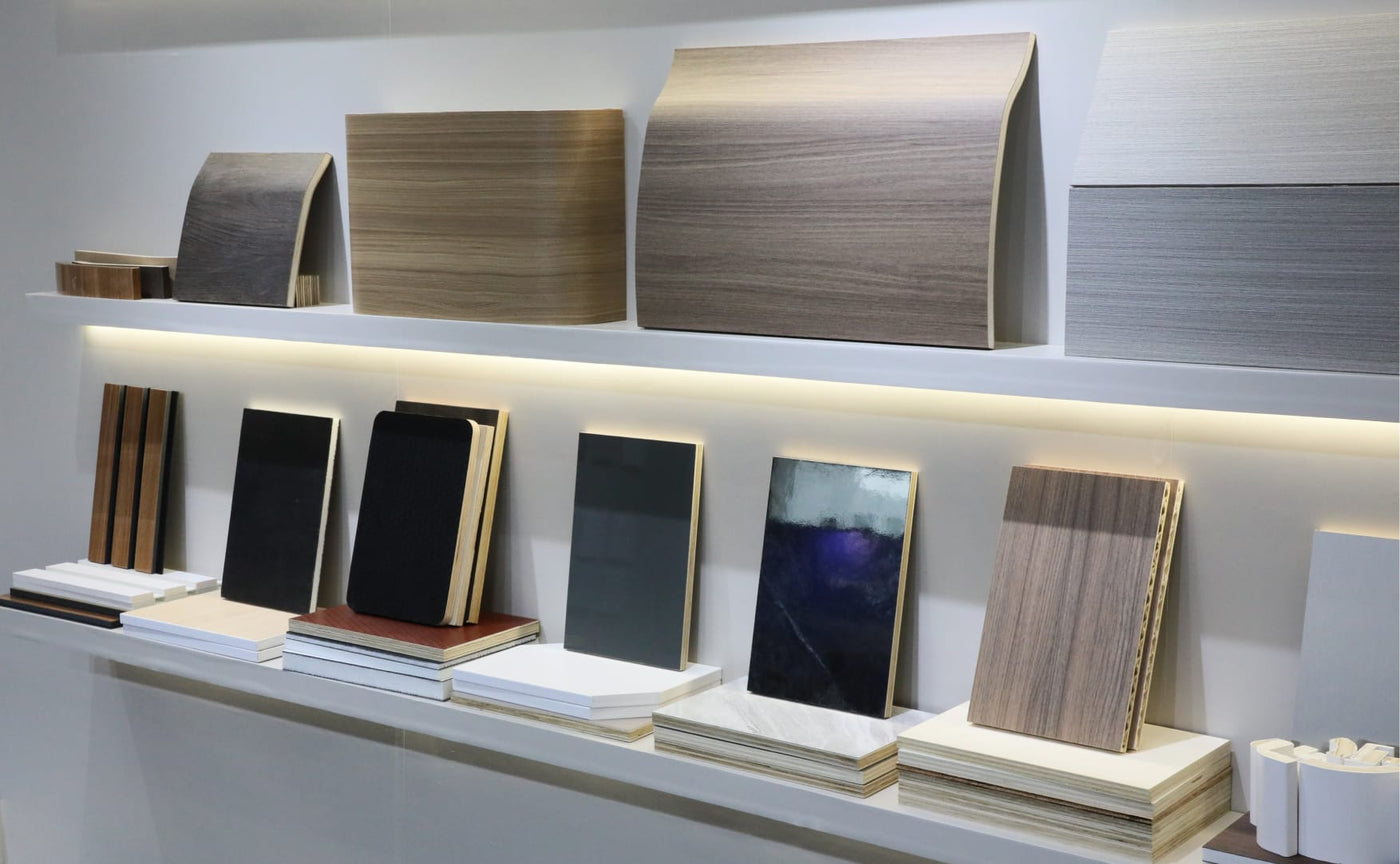

| Decorative Films | PP, PET, PVC, HPL |
Why Choose BIGBAHN®
Our plywood sheets is engineered for interior applications in RVs, marine vessels, and aircraft. It delivers an ideal balance of extremely low weight and high structural strength.
With an ultra-low density of approximately 400 kg/m³, certified low formaldehyde emission, and excellent screw-holding performance, it is a premium eco-friendly core material for lightweight mobile living solutions.
Competitive Edge
| Standard Size | 1220×2440 mm / 4×8 ft |
| Weight Reduction | less 40% lighter than conventional plywood used in furniture applications, depending on thickness and construction. |
| Adequate Screw-holding Strength | 710 N - 740 N ( 12mm, 15mm ) |
| Stable Panel Quality | Bigbahn lightweight plywood delivers 40% weight savings with unmatched stability — using high-grade poplar-eucalyptus, PUR bonding, and a precision process: 8-stage dust removal, 48-hour curing, and moisture locked at 8–12%. Result: durable, low-maintenance panels, built for RV longevity. |
| Density Range | 400–430 kg/m³ |
| Thickness Range | 2.7 - 30 mm |
Precision Engineering for RV Interiors
Types of Plywood RV Panels & Materials
-
Struggling with RV Weight? Lightweight Plywood is the Answer
Excess weight slowing down your production? Our premium lightweight plywood reduces load without sacrificing strength.
-
Premium PET Foam Board, Factory Direct & Free Samples
Lightweight, high-strength PET foam core panels direct from manufacturer. OEM or ODM supported. Fast shipping.
-
Custom Grille Panel OEM or ODM Supplier, Free Engineering Support
Struggling to find custom grille panels that fit your specs? We offer full OEM or ODM manufacturing & expert technical support.
Request free samples!
-
Custom GMT Panel Manufacturer
Optimize your RV production line and lower assembly costs with our high-strength, lightweight GMT panels.
-

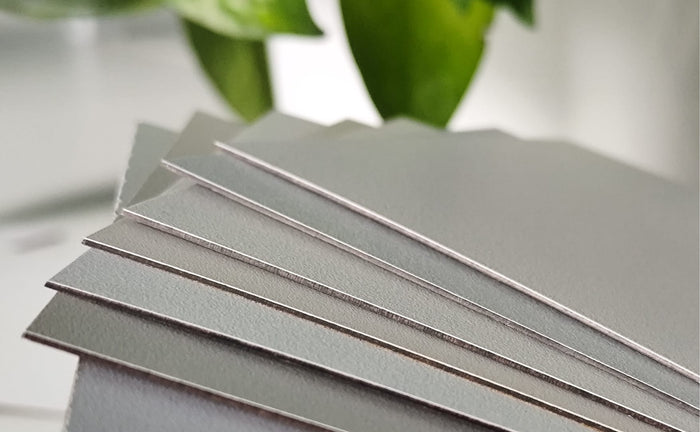

Custom High-Pressure Laminate OEM Supplier
Factory-direct High-Pressure Laminate engineered for RV outfitters. Custom specs, ENF low-emission certified, and robust OEM support.
-
Lightweight Curved Door Panel for RVs
Optimize caravan interiors with premium lightweight curved door panels. Reduce vehicle weight while maximizing space.
Pick A Challenge That’s Troubling You
| You're Experiencing | Our Solutions |
|---|---|
| Heavy panels eating into your payload? Customers constantly asking for more storage space? | Lightweight structural composite panel: Density as low as 320kg/m³, 40% weight reduction at equal strength. That frees up enough payload to add an entire water tank. |

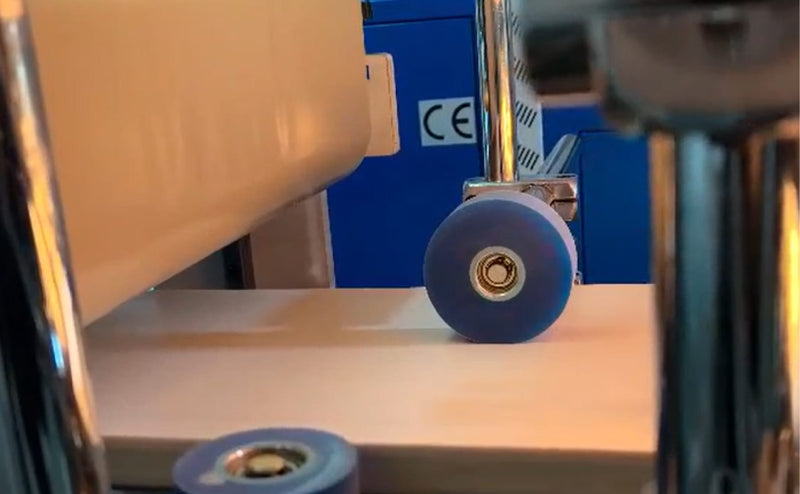

| On-site edge banding consumes too much time, with workers constantly patching and reworking. | Pre‑bonded edge‑sealed panels: factory‑finished edge banding, 30% faster installation, and furniture‑grade surface aesthetics. |
| Humid environments causing panel swelling and reduced screw‑holding strength? | Moisture‑resistant lightweight plywood: special bonding process delivers enhanced moisture protection and consistent screw‑holding strength. |

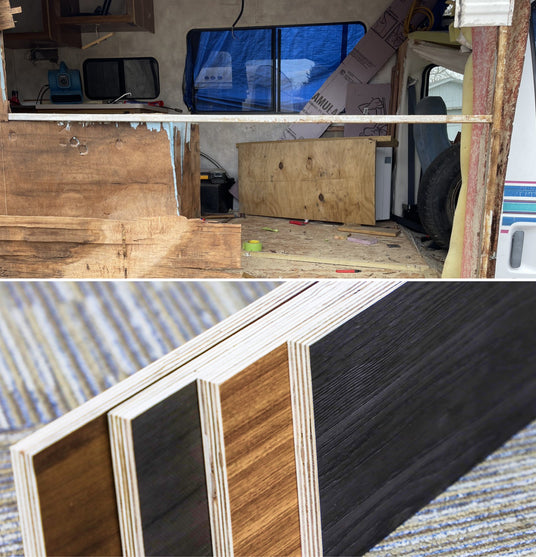

| Wooden frames rot, making it impossible to guarantee durability in old RV renovations. | Aluminum‑faced composite panel: zero risk of rot, high structural strength, ideal for load‑bearing areas such as roofs and floors. |
Exploring a Partnership with BIGBAHN
Accelerate your production and lead the market with BIGBAHN’s high-performance materials. We partner with RV builders, industrial designers, and distributors globally to deliver customized, eco-friendly, and moisture-proof panel solutions.
Frequently Asked Questions
What is lightweight plywood and how is it different from standard plywood?
What is lightweight plywood and how is it different from standard plywood?
Lightweight plywood is an engineered panel made with low‑density species (such as poplar, paulownia, okoume) or special cores (hollow‑core, foam‑core, honeycomb) to reduce overall weight while keeping a stable, layered structure.
Bigbahn Lightweight Plywood follows this principle but is specifically engineered for RVs and mobile interiors, combining reduced weight with robust surfaces and eco‑friendly construction, making it ideal where every kilogram matters.
How much lighter is lightweight plywood compared with normal plywood?
How much lighter is lightweight plywood compared with normal plywood?
Depending on the timber species and core design, lightweight plywood can be roughly 20–40% lighter than typical construction or furniture‑grade plywood of the same thickness and size.
Bigbahn's Lightweight Plywood is 40% lighter than comparable products.
What is the typical lead time from project start to finish?
What is the typical lead time from project start to finish?
We deliver custom interior solutions within standard lead times of 4–8 weeks for most projects.
Complex or large-volume orders may extend to 10–12 weeks. A firm timeline is scoped during your design consultation and confirmed before production begins.
Do you offer sustainable or eco-friendly options?
Do you offer sustainable or eco-friendly options?
Yes. We provide multiple certified green solutions:
- Our composite wood panels are recyclable and carbon-negative — storing more carbon than is emitted during production and use.
- Our PET products are made from 50% recycled water bottles and are 100% recyclable, supporting a circular economy.
Consult our design team to match your sustainability goals with the right material solution.
How do you ensure reliable bonding between the XPS core and the skin layers?
How do you ensure reliable bonding between the XPS core and the skin layers?
At BIGBAHN, we eliminate delamination risks through industrial-grade manufacturing processes.

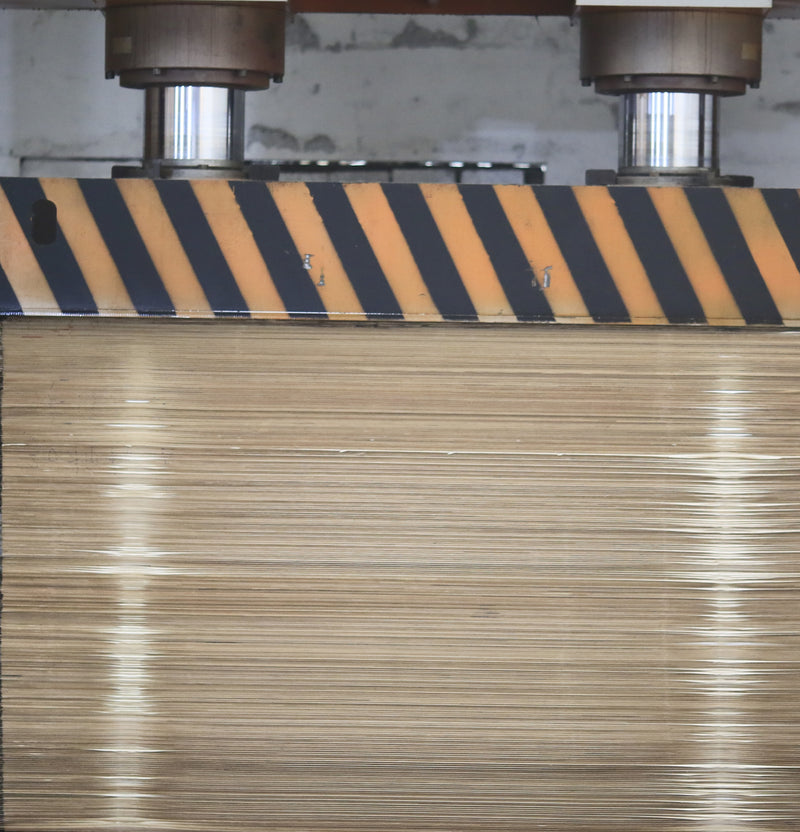

Our panels are produced using high-pressure lamination with PUR hot-melt adhesives specifically formulated for XPS. Unlike DIY methods that require sanding and perforation, our factory-controlled process ensures consistent adhesion strength. For applications requiring extreme durability, we offer fiberglass-reinforced skins with enhanced chemical bonding — no risk of skin peeling over time.
BIGBAHN Advantage: 100% factory-bonded with rigorous peel strength testing before shipment.
I've heard that XPS against metal or wood can cause squeaking. How does BIGBAHN address this?
I've heard that XPS against metal or wood can cause squeaking. How does BIGBAHN address this?
Squeaking occurs when two rigid surfaces rub against each other under movement or vibration.
Our pre-laminated sandwich panels eliminate this issue entirely — the XPS core is permanently bonded to both skins, creating a single monolithic panel with no independent moving layers.
For installation, we recommend using our factory-finished panels with integrated anti-friction backing, or following our simple installation guidelines that include a polyethylene slip sheet between the panel and subfloor when required.
BIGBAHN Advantage: No field assembly of layers means no squeaking — period.
Is lightweight plywood strong enough for cabinets and RV furniture?
Is lightweight plywood strong enough for cabinets and RV furniture?
Bigbahn Lightweight Plywood is designed specifically for RV furniture and interior components, so it balances low weight with tested screw‑holding strength and durability, making it a reliable choice for overhead cabinets, seating bases, and wall units in mobile environments.
Is lightweight plywood compatible with decorative finishes?
Is lightweight plywood compatible with decorative finishes?
Most lightweight plywood can be laminated, film‑wrapped, or coated with decorative surfaces as long as the core is dimensionally stable.
Does lightweight plywood cost more, and is Bigbahn worth the price?
Does lightweight plywood cost more, and is Bigbahn worth the price?
Bigbahn Lightweight Plywood is positioned as a professional RV solution: you pay a premium over generic panels, but you gain weight savings, proven durability, and integrated decorative options, which together deliver better long‑term value for serious RV builders.
Can I use Bigbahn Lightweight Plywood in wet or humid environments?
Can I use Bigbahn Lightweight Plywood in wet or humid environments?
While all plywood needs proper sealing in wet areas, Bigbahn designs its lightweight panels for RV use, where temperature and humidity cycles are normal, and supports pairing them with suitable edge banding and finishes to improve moisture resistance in kitchens and washrooms.
