12mm Lightweight Plywood for RV
12mm Lightweight Plywood for RV is backordered and will ship as soon as it is back in stock.
Contact Us If You Have Any Questions
Contact Us If You Have Any Questions
Company Address
Company Address
AM SPORTPARK 4, 97246 EIBELSTADT, GERMANY
Contact Number
Contact Number
+49 9303 9812030
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specification
| Dimensions | 2500*1200mm/2440*1220mm |
| Thickness | 12mm |
| Available Thicknesses | 12/15/18mm |
| Material | Plywood |
| Tolerance | Length&Width: +/-1.5mm, Thickness: +/- 0.3mm |
| Minimum Order Quantity (MOQ) | 1x20'GP |
| Supply Ability | 20 containers per month. |
| Delivery Time / Lead Time | 25-30 days upon order confirmation |
| Density | 420kg/m3 (+/-20) |
| Formaldehyde Emission Level | E0 |
| Moisture Content | 6-14% |
| Applicable Vehicle Models | All vehicle models |
| Fire Resistance Rating / Fire Rating | B2/D-s1,d0 |
| Bonding Strength | NA |
| Flexural Strength / Bending Strength | NA |
| Payment Terms | 30% deposit, 70% balance payment against BOL copy |
| Certification | FSC, EUTR, etc. |

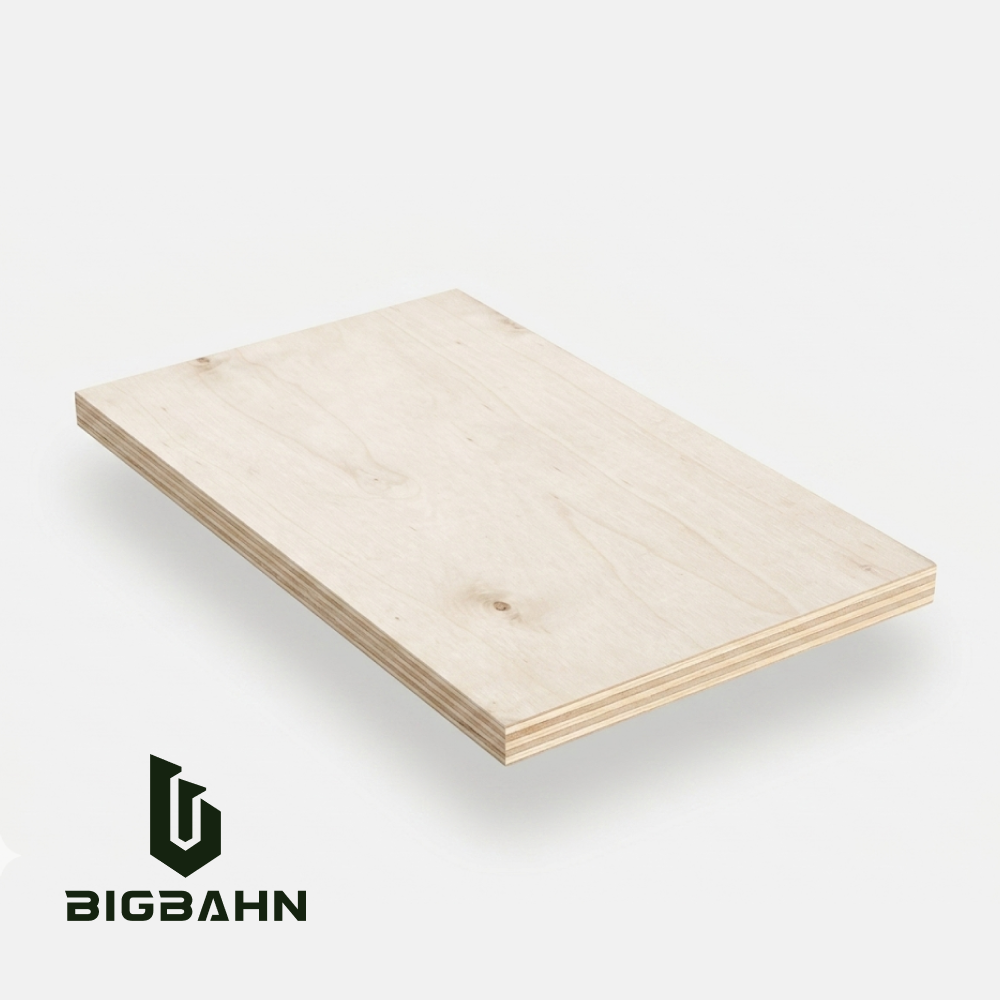

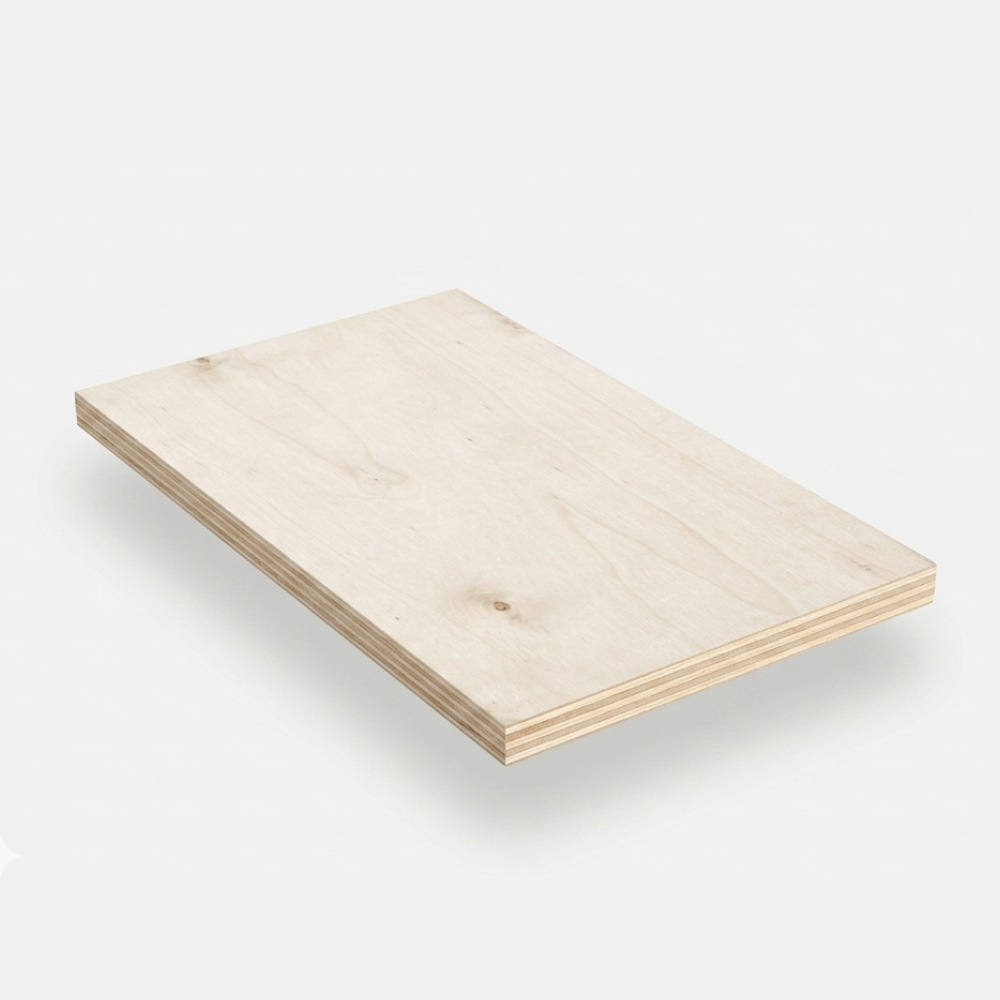

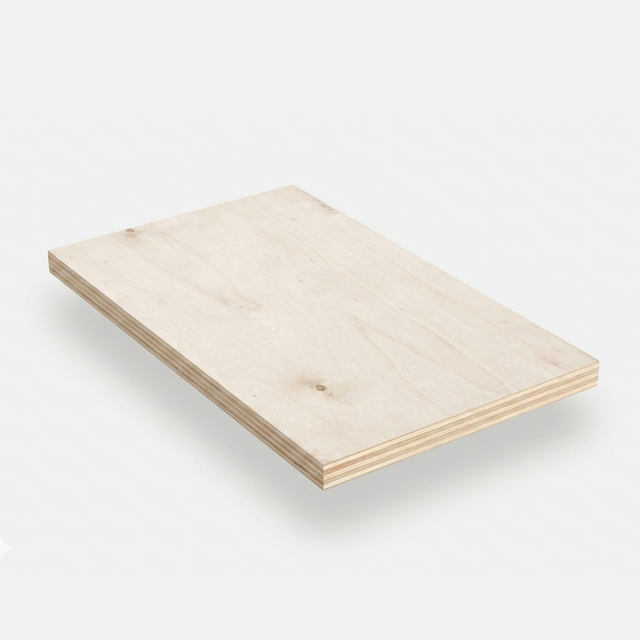

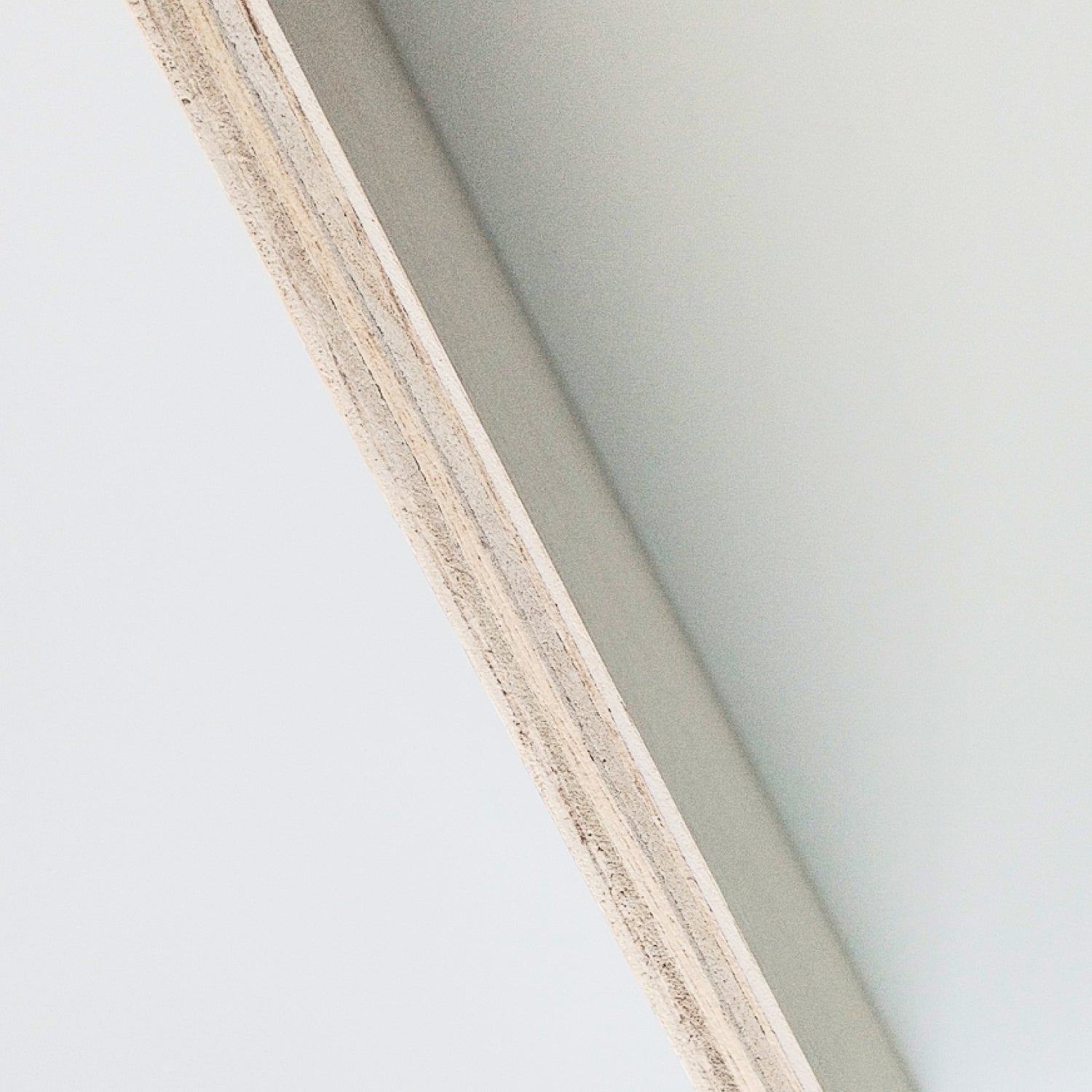

BIGBAHN 12mm Lightweight Plywood – Core Weight Reduction Material for Mobile Living Spaces (RVs, Yachts, Aircraft)
Core Technical Specifications – 12 mm Thickness
| Parameter | Specification |
| Product Substrate | Poplar Hybrid (Yang‑An core) |
| Standard Dimensions | 2440 × 1220 mm, 2500 × 1220 mm, or 2440 × 904 mm (custom sizes available) |
| Density | 400–430 kg/m³ – approx. 40 % weight reduction compared to standard poplar plywood |
| Weight per Panel | Approx. 14 ± 1 kg per standard panel |
| Thickness Tolerance | +0 / –0.3 mm |
Mechanical Properties
| Parameter | Value | Test Method |
| Screw holding force | 710 N | — |
| Bending strength | 26.52 MPa | — |
| Modulus of elasticity | 5100 MPa | — |
| Gluing quality | 1.06 MPa | Complies with EN 314‑2 Class 3 |
Environmental & Fire Safety Compliance
| Parameter | Value |
| Emission class | E0 / ENF (low formaldehyde added) |
| Fire resistance | Class B2 – complies with DIN 5510‑2 S4 |
| Moisture content | 6 % – 14 % (recommended to be maintained at < 12 %) |
Product Characteristics
-
Weight reduction: Through a scientifically optimised poplar‑to‑eucalyptus core ratio, significant weight reduction is achieved without compromising structural integrity, thereby increasing payload capacity and reducing fuel consumption.
-
Dimensional stability: The product exhibits low susceptibility to climatic temperature variations, ensuring consistent structural stability and reliable adaptation to indoor and outdoor humidity fluctuations.
-
Machinability: The panel surface is highly flat and facilitates CNC routing, edge banding, and profiling operations.
-
Surface compatibility: The smooth surface enables lamination with a wide range of decorative finishes, including PP, PVC, PET, HPL, and other high‑grade surfacing materials.
-
Environmental safety: The material is free from the eight heavy metals restricted under applicable regulations. Formaldehyde emission values are below detection limits.
Product Classification & Composite Configurations
The 12 mm lightweight plywood serves as a core substrate and is available in the following composite variants:
-
HPL‑Laminated Series: The 12 mm lightweight core is surfaced with high‑pressure laminate (HPL), typically in a thickness range of 0.45–0.80 mm. This configuration provides high resistance to scratching, abrasion, and elevated temperatures, and is suitable for kitchen countertops and high‑contact surfaces.
-
Aluminium‑Faced / Aluminium Honeycomb Composite Panels: Although primarily wood‑based, BIGBAHN also supplies aluminium honeycomb panels and composite structures incorporating the lightweight plywood as a surface layer. Aluminium‑faced variants provide enhanced mechanical strength and impact resistance, and are recommended for flooring and structural applications requiring high rigidity.
-

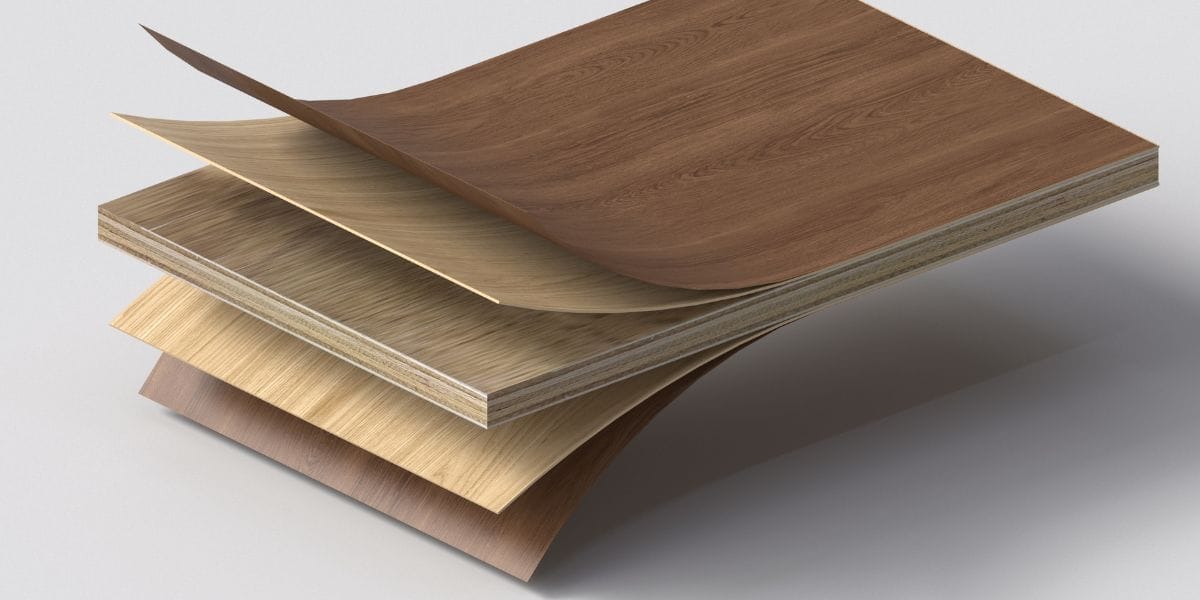

Multi‑Material Decorative Laminates: Includes PP‑film, PET‑film, and CPL (Continuous Pressure Laminate) finishes, with access to thousands of textures (stone, wood grain, fabric) available for selection.
Application
-
Recreational Vehicles (RVs): Furniture carcasses, kitchen and bathroom countertops, bed frames, interior doors, and sidewall decorative panels.
-
Yacht Interiors: Suitable for interior furniture manufacturing due to good weather‑resistance and moisture‑resistance.
-
Commercial / Residential Fit‑Out: Door frames, window frames, skirting boards, and substrates for high‑end custom furniture.
-
Specialised Transport: Interior fit‑outs for weight‑sensitive mobile spaces, including aircraft.
Remarks
-
Environmental effects: Although the panels undergo controlled conditioning, natural cracking or delamination may occur in isolated cases due to environmental variables. Batch‑scale cracking is to be classified as a quality control deviation.
-
Surface finish quality: During lamination, dust contamination may cause micro‑bumps or particles on the surface. BIGBAHN employs an 8‑stage dust‑removal process to minimise such occurrences.
-
Batch‑to‑batch colour variation: Minor colour differences may occur between printing batches of decorative films. It is recommended that panels from the same production batch be used for a single furniture assembly.
-
Screw holding force considerations: The balance between weight reduction and screw holding force must be assessed by the OEM. The 12 mm lightweight plywood meets the requirements for standard furniture applications. For applications demanding maximum screw holding force, the poplar‑hybrid core is recommended over the meranti core.
-
Operational safety: During dry sanding operations, a P1‑grade dust mask shall be worn to prevent inhalation of wood dust.
-
Storage recommendations: The panels shall be stored in a cool, well‑ventilated environment, protected from elevated temperatures, strong acids, and strong oxidising agents.
