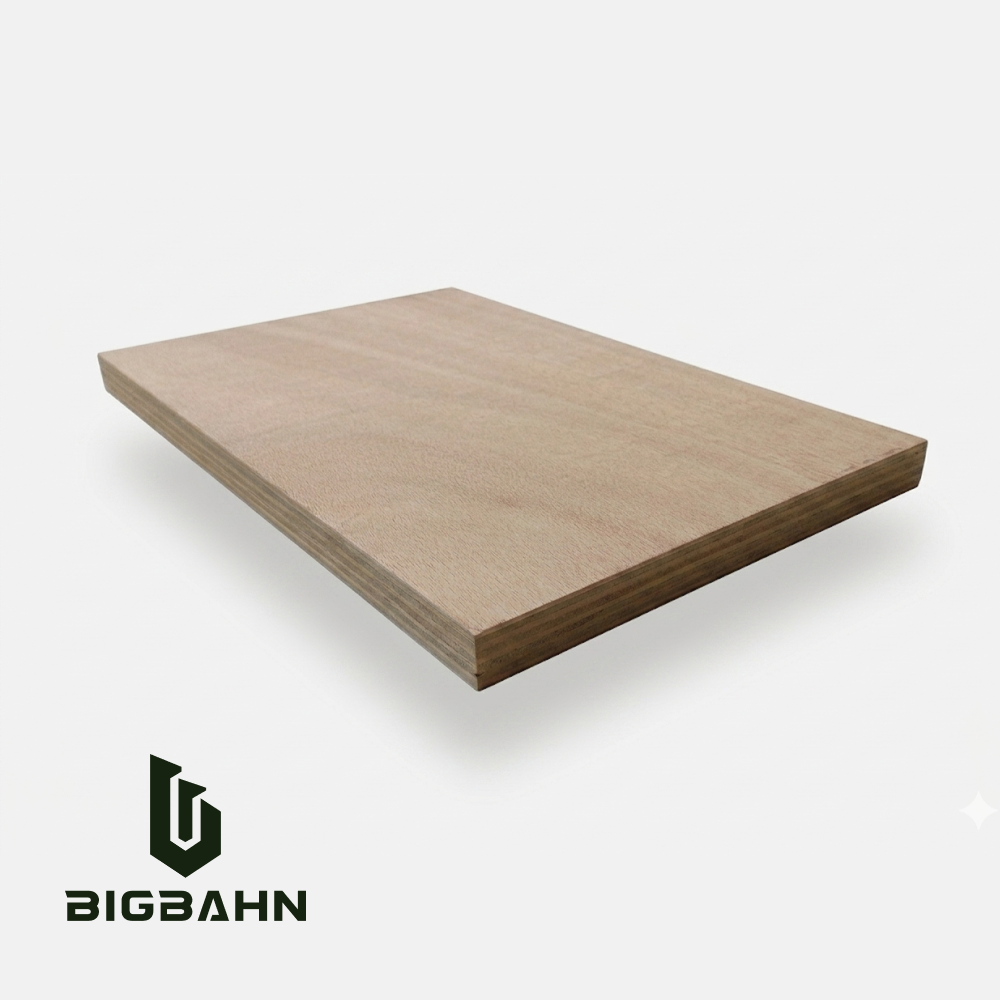

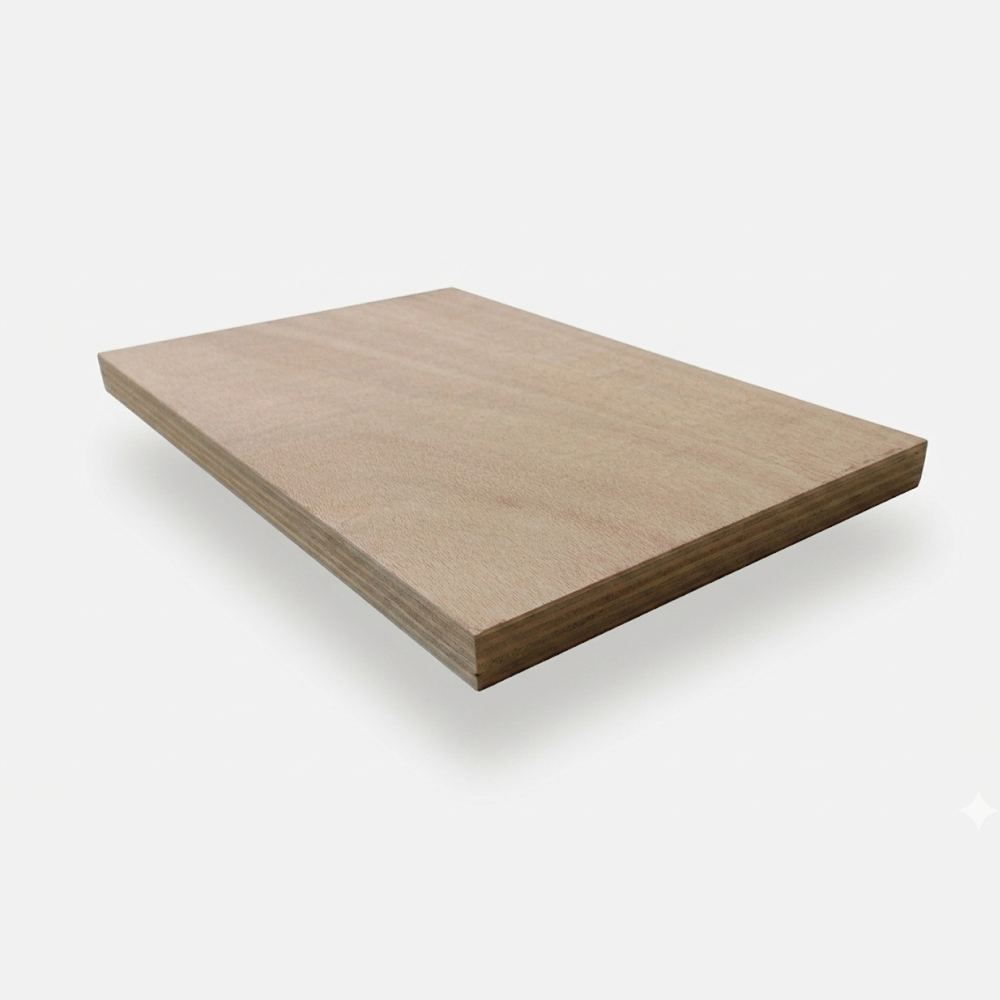

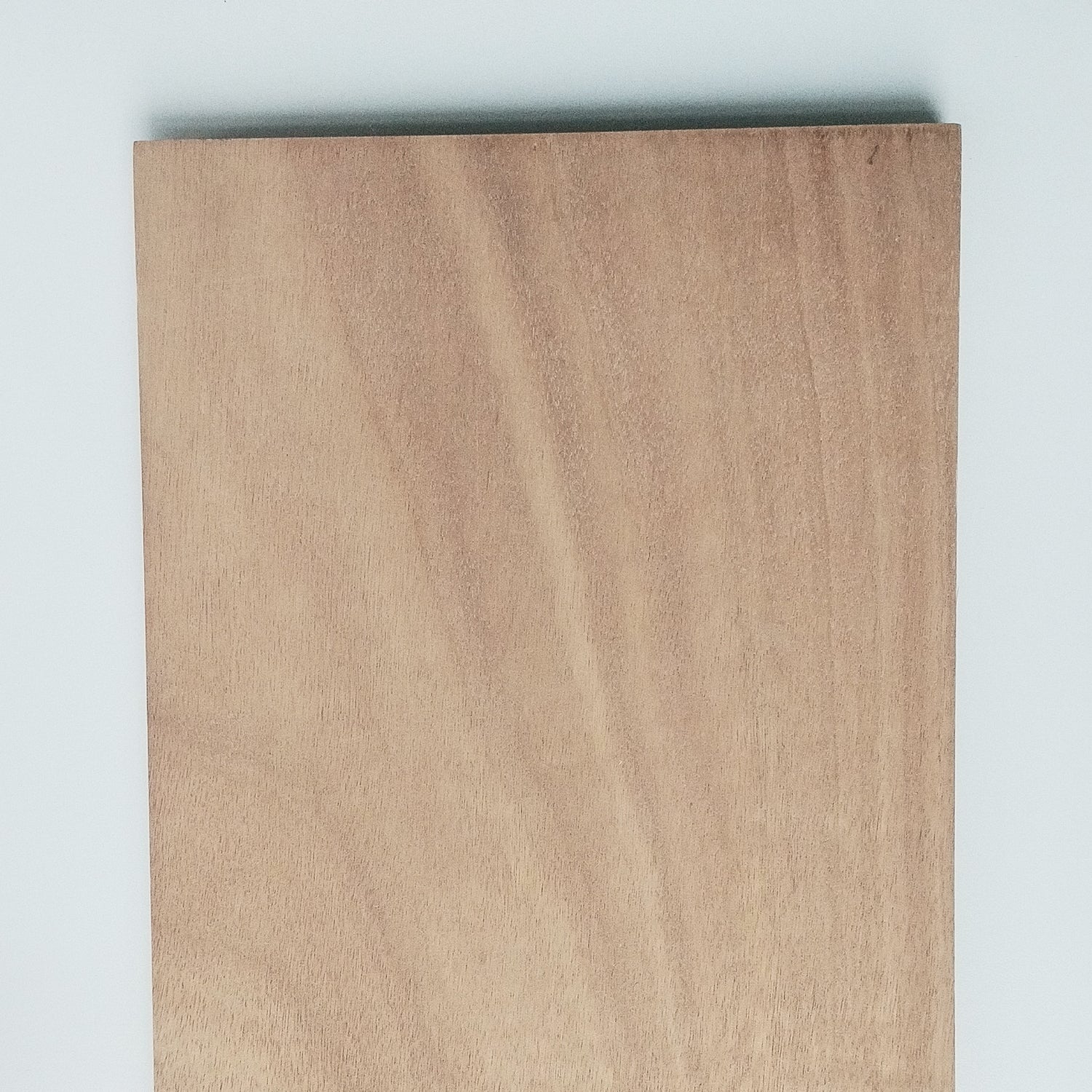

18mm Lightweight Poplar Hybrid Raw Plywood for RV - Ideal Lightweight Plywood Solution

Contact Us If You Have Any Questions

info@bigbahn.de

Company Address

AM SPORTPARK 4, 97246 EIBELSTADT, GERMANY

Contact Number

+49 9303 9812030

Get Free Quote

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Specification

Dimensions	25001200mm/24401220mm
Thickness	18mm
Available Thicknesses	12/15/18mm
Material	Plywood
Tolerance	Length&Width: +/-1.5mm, Thickness: +/- 0.3mm
Minimum Order Quantity (MOQ)	1x20'GP
Supply Ability	20 containers per month.
Delivery Time / Lead Time	25-30 days upon order confirmation
Density	420kg/m3 (+/-20)
Formaldehyde Emission Level	E0
Moisture Content	6-14%
Applicable Vehicle Models	All vehicle models
Fire Resistance Rating / Fire Rating	B2/D-s1,d0
Bonding Strength	NA
Flexural Strength / Bending Strength	NA
Payment Terms	30% deposit, 70% balance payment against BOL copy
Certification	FSC, EUTR, etc.

BIGBAHN 18 mm Lightweight Plywood is employed as a representative thickness grade in motorhome and yacht furniture manufacturing, combining structural strength with lightweight performance.

Application

Countertops – The 18 mm gauge is the preferred thickness for kitchen worktops. To withstand high temperatures, moisture, and abrasion in kitchen environments, the 18 mm lightweight substrate is typically laminated with HPL, thereby achieving scratch resistance, abrasion resistance, high‑temperature resistance, and fire resistance.
Kitchen cabinets – The panel is used for cabinet carcasses and shelves, ensuring structural stability of the furniture under vibration during vehicle operation.
Dining tables – Foldable or fixed tables in motorhomes are frequently manufactured from 18 mm panels to guarantee load‑bearing capacity.
Cabinet doors – Although thinner gauges are occasionally used for door panels, 18 mm is often selected for thicker, premium flat or curved cabinet doors.
Bathroom partitions – Owing to its moisture resistance and dimensional stability, the 18 mm lightweight panel is frequently employed as partition walls in bathroom areas.
Vanity units – The panel is used for storage cabinets in washrooms. It effectively accommodates variations in indoor and outdoor temperature and humidity, with minimal influence from climatic differences, thus resisting deformation.
Bathroom countertops – Similar to kitchen worktops, the panel laminated with HPL or waterproof film can be applied as sink countertops, providing excellent water resistance.

Core advantages in application

Weight reduction – The standard sheet of 18 mm thickness weighs approximately 20 kg, which contributes to reduced overall vehicle load and fuel consumption.
Dimensional stability and screw‑holding capacity – In high‑frequency use environments such as kitchens and bathrooms, the 18 mm panel provides high screw‑holding strength (reference value for 15 mm: 740 N), ensuring secure attachment of locks, hinges, and handles without loosening.
Weather resistance and low emissions – The lamination process employs PUR (polyurethane reactive) hot‑melt adhesive, which prevents delamination and blistering under high‑temperature and high‑humidity conditions in kitchen and bathroom applications. The panel meets the ENF (no‑added formaldehyde) emission class, thereby ensuring indoor air quality in enclosed spaces.

Which is more effective at reducing weight: 18mm lightweight panels or GMT panels?

GMT (glass‑mat thermoplastic) sandwich panels are generally more effective at reducing weight than 18 mm lightweight plywood panels for the same stiffness and strength, because they use a foam or lightweight core with thin skins instead of a solid wood veneer stack.

1. Weight basics for 18 mm lightweight plywood

Bigbahn18 mm lightweight plywood (2440*1220mm) typically weighs about 49.60 lbs (22.5 kg), with poplar or softwood cores around 27–30 kg per sheet and birch closer to 37 kg.

Very light solid‑veneer species like paulownia can bring densities down to about 280 kg/m³—roughly half the weight of standard birch—but the panel is still a solid wood‑veneer construction.

2. How foam/GMT sandwich panels save more weight

In foam or sandwich construction, a lightweight foam or XPS core carries shear, while thin skins carry tension/compression, so you can match or exceed plywood stiffness at substantially lower mass.

Example data for Matilda Lightweight XPS‑core sandwich panels show 18 mm panels that are 45% lighter than an already lightweight ply, 60% lighter than hoop pine, and about 67% lighter than birch plywood.

3. GMT panels versus lightweight plywood in practice

Lightweight plywood mainly reduces weight by using lower‑density veneers, but it remains a relatively dense, solid panel; density tables for 18 mm poplar or pine ply still sit near 28 kg per sheet for 1220×2440 mm.

GMT or similar foam‑core panels can achieve densities around 230–340 kg/m³ and documented weight savings over 45–60% compared with conventional plywood of the same thickness.

For RV structures, suppliers and technical guides highlight foam/GMT sandwich solutions when maximum weight reduction is the goal and plywood when cost, screw‑holding, and simplicity matter more.

So for pure weight reduction at a given thickness and panel stiffness, GMT/foam‑core sandwich panels are more effective than 18 mm lightweight plywood; plywood is still useful where you want easier joinery, fasteners, and lower material cost.

Frequently Asked Questions

What is 18 mm lightweight plywood?

It is an 18 mm‑thick plywood sheet (usually 2440 × 1220 mm / 4×8 ft) designed with a lower‑density core or special construction to reduce weight compared with standard plywood.

BIGBAHN’s lightweight series is developed to offset heavy payloads (e.g., batteries in EVs and RVs) by cutting panel weight compared with standard poplar plywood.

How much lighter is it than standard plywood?

BIGBAHN states their lightweight plywood reduces weight by about 40% compared to standard poplar plywood of similar thickness.

What are typical uses for 18 mm lightweight plywood?

18 mm boards are commonly recommended for heavy‑duty interior applications such as kitchen carcasses, wardrobe doors, TV unit frames, and large horizontal shelves.

What certifications and emissions standards do lightweight plywood products meet?

Cover FSC or other sustainability labels and whether marine or WBP glues are used for moisture‑critical applications.

How much does 18 mm lightweight plywood what are MOQs?

1x20'GP.

What applications do suppliers recommend for their 18 mm lightweight plywood?

Our guides emphasize use in modular furniture, cabinets, vehicle interiors, marine furniture, and other projects that need a strong but lighter panel.

Is BIGBAHN lightweight plywood eco‑friendly?

BIGBAHN promotes their lightweight plywood as eco‑friendly, emphasizing material efficiency and weight reduction as part of sustainable interior design for vehicles and mobile spaces.

What makes BIGBAHN plywood “40% lighter”?

BIGBAHN’s technical article explains that using alternative lightweight core materials and optimized layups can reduce panel mass by up to 40% while retaining required stiffness and strength.
